| Manufacturer Part Number: | CCS15S40,L3F |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 40V 1.5A CST2C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CCS15S40,L3F Datasheet |
| Internal Part Number | 898-CCS15S40,L3F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Toshiba - Schottky Barrier Diodes | |
| Online Catalog | Schottky Barrier Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 1.5A | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 1.5A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 200µA @ 40V | |
| Capacitance @ Vr, F | 170pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |

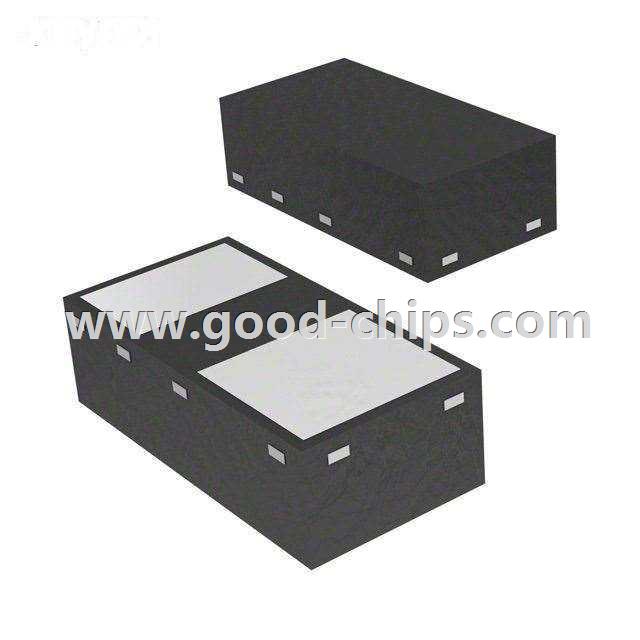

| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | CST2C | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CCS15S40,L3F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CCS15S40,L3F is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of CCS15S40,L3F is new and unused, you can buy CCS15S40,L3F Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CCS15S40,L3F.
