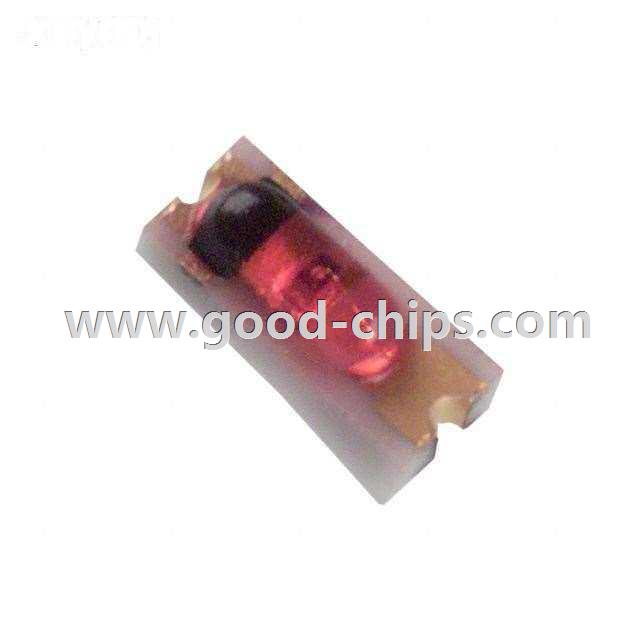

Manufacturer Part Number: | CCL-LX45IT |
---|---|
Manufacturer: | Lumex Opto/Components Inc. |
Product Category: | LED Indication - Discrete |
Available Quantity: | 30010 Pieces |
Unit Price: | Quote by Email |
Description: | Red LED Indication - Discrete 2.1V 2-SMD, No Lead |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CCL-LX45IT Datasheet |
Internal Part Number | 898-CCL-LX45IT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LEDs Benefits of Custom LED and LCD Technology | |
Online Catalog | CCL-LX45xx Oval with Domed Top 0805 Package LEDs | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Lumex Opto/Components Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | Red | |
Lens Color | Red | |
Lens Transparency | Clear | |
Millicandela Rating | 7.2mcd | |
Lens Style/Size | Oval with Domed Top | |
Voltage - Forward (Vf) (Typ) | 2.1V | |
Current - Test | 20mA | |
Viewing Angle | 180° | |
Mounting Type | Surface Mount | |
Wavelength - Dominant | - | |
Wavelength - Peak | 635nm | |
Features | - | |
Package / Case | 2-SMD, No Lead | |
Supplier Device Package | SMD | |
Size / Dimension | 3.20mm L x 1.27mm W | |
Height (Max) | 1.20mm | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CCL-LX45IT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CCL-LX45IT is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of CCL-LX45IT is new and unused, you can buy CCL-LX45IT Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CCL-LX45IT.
