| Manufacturer Part Number: | CC06H5A-TR |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BOARD MOUNT 5A 32VDC 0603 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CC06H5A-TR Datasheet |
| Internal Part Number | 898-CC06H5A-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Selecting Fuses - Simple Procedures for Proper OvercurrentProtection of DC-DC Converters | |

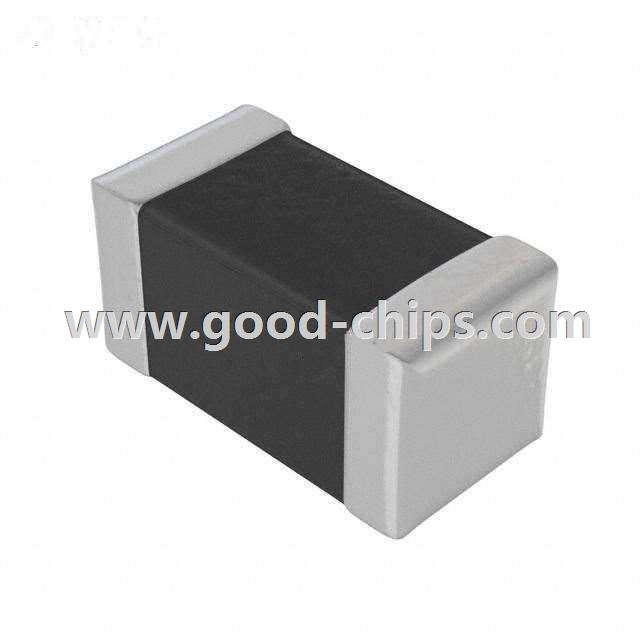

| Featured Product | CC06H Series 0603 SMD Chip Fuse | |
| Online Catalog | CC06H Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | CC06H | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 5A | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 32V | |
| Response Time | Fast | |
| Package / Case | 0603 (1608 Metric) | |
| Mounting Type | Surface Mount | |
| Breaking Capacity @ Rated Voltage | 50A | |
| Melting I²t | 2 | |
| Approvals | cULus | |
| Operating Temperature | -40°C ~ 85°C | |
| Color | - | |
| Size / Dimension | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.47mm) | |
| DC Cold Resistance | 0.013 Ohm | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CC06H5A-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CC06H5A-TR is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CC06H5A-TR is new and unused, you can buy CC06H5A-TR Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CC06H5A-TR.
