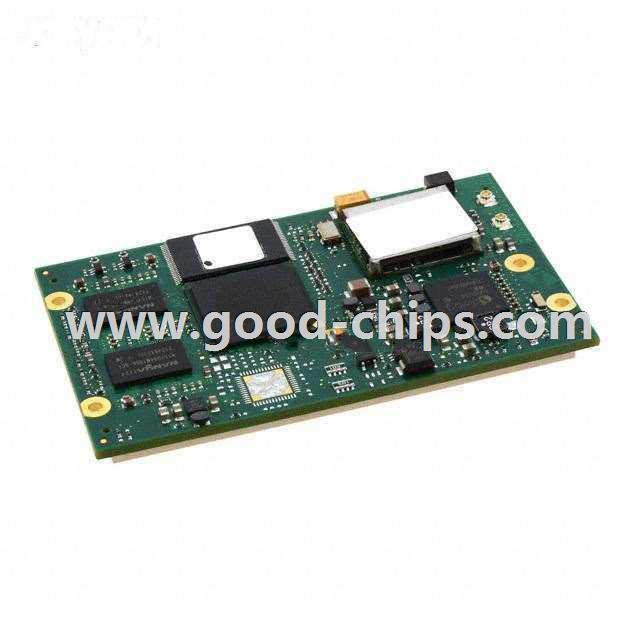

| Manufacturer Part Number: | CC-WMX-KD69-VM |
|---|---|
| Manufacturer: | Digi International |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE WIFI U.FL ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CC-WMX-KD69-VM Datasheet |
| Internal Part Number | 898-CC-WMX-KD69-VM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Antenna Design and Integration Fundamentals | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Obsolescence/ EOL | EOL 02/May/2016 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Digi International | |
| Series | ConnectCore® Wi-i.MX53 | |
| Packaging | Bulk | |
| Part Status | Active | |
| RF Family/Standard | WiFi | |
| Protocol | 802.11a/b/g/n | |
| Modulation | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK | |
| Frequency | 2.4GHz, 5GHz | |
| Data Rate | 65Mbps | |
| Power - Output | 17dBm | |
| Sensitivity | -94dBm | |
| Serial Interfaces | Ethernet, I²C, I²S, JTAG, SPI, SDIO, UART, USB | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | 512MB Flash, 512MB RAM | |
| Voltage - Supply | 3.75V | |
| Current - Receiving | 700mA | |
| Current - Transmitting | 700mA | |
| Mounting Type | Chassis Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CC-WMX-KD69-VM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CC-WMX-KD69-VM is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of CC-WMX-KD69-VM is new and unused, you can buy CC-WMX-KD69-VM Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CC-WMX-KD69-VM.
