Manufacturer Part Number: | CBTL04082ABS,518 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | Interface - Analog Switches - Special Purpose |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC MUX/DEMUX 2:1 4CH 42HVQFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CBTL04082ABS,518 Datasheet |
Internal Part Number | 898-CBTL04082ABS,518 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | CBTL02042A Switching Appl for mSATA, PCI Express Mini-Card | |
PCN Obsolescence/ EOL | EOL 30/Dec/2015 | |
PCN Packaging | Lighter Packing Reels 30/Mar/2014 | |
Category | Integrated Circuits (ICs) | |
Family | Interface - Analog Switches - Special Purpose | |
Manufacturer | NXP Semiconductors | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Applications | DisplayPort, PCIe, USB | |
Multiplexer/Demultiplexer Circuit | 2:1 | |
Switch Circuit | - | |
Number of Channels | 4 | |
On-State Resistance (Max) | 6 Ohm (Typ) | |
Voltage - Supply, Single (V+) | 3 V ~ 3.6 V | |
Voltage - Supply, Dual (V±) | - | |
-3db Bandwidth | 6GHz | |
Features | Bi-Directional, SATA | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Package / Case | 42-VFQFN Exposed Pad | |

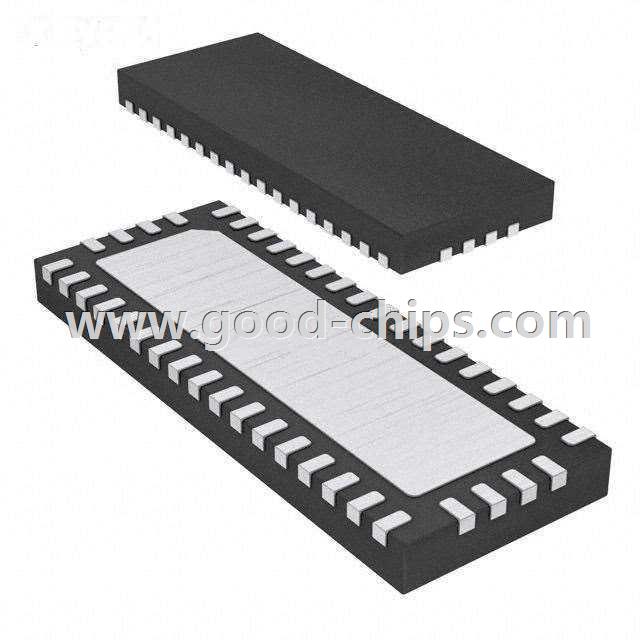

Supplier Device Package | 42-HVQFN | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CBTL04082ABS,518 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CBTL04082ABS,518 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of CBTL04082ABS,518 is new and unused, you can buy CBTL04082ABS,518 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CBTL04082ABS,518.
