Manufacturer Part Number: | CBT-90-W65S-C11-NA100 |
---|---|
Manufacturer: | Luminus Devices Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9019 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting COBs, Engines, Modules LED Module CBT-90 White, Cool Square |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CBT-90-W65S-C11-NA100 Datasheet |
Internal Part Number | 898-CBT-90-W65S-C11-NA100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
PCN Assembly/Origin | Multiple Changes 10/Feb/2015 | |
Online Catalog | CBT-90 Series | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | Luminus Devices Inc. | |
Series | CBT-90 | |
Packaging | - | |
Part Status | Active | |
Type | LED Module | |
Color | White, Cool | |
CCT (K) | 6500K | |
Wavelength | - | |
Configuration | Square | |
Flux @ Current/Temperature - Test | - | |
Current - Test | 9A | |
Temperature - Test | - | |
Voltage - Forward (Vf) (Typ) | 3.6V | |
Lumens/Watt @ Current - Test | - | |
Current - Max | 18A | |
CRI (Color Rendering Index) | 70 (Typ) | |
Viewing Angle | - | |
Features | With Connector | |
Size / Dimension | 42.00mm L x 28.00mm W | |
Height | 3.18mm | |
Light Emitting Surface (LES) | 3.00mm L x 3.00mm W | |
Lens Type | Flat | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CBT-90-W65S-C11-NA100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |

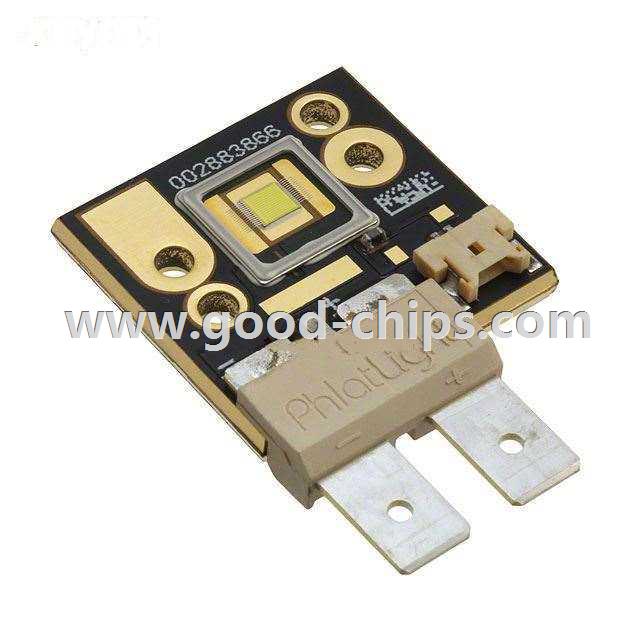

Picture / Image / Photo | Send via email |
CBT-90-W65S-C11-NA100 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of CBT-90-W65S-C11-NA100 is new and unused, you can buy CBT-90-W65S-C11-NA100 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CBT-90-W65S-C11-NA100.
