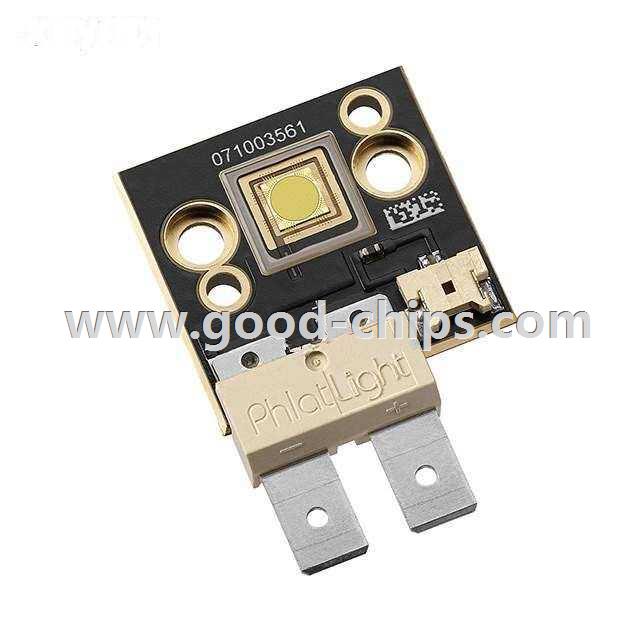

| Manufacturer Part Number: | CBT-140-WCS-C15-UB120 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting COBs, Engines, Modules LED Module CBT-140 White, Cool Rectangle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CBT-140-WCS-C15-UB120 Datasheet |
| Internal Part Number | 898-CBT-140-WCS-C15-UB120 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Design/Specification | Datasheet Update 16/Dec/2013 | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Luminus Devices Inc. | |
| Series | CBT-140 | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | LED Module | |
| Color | White, Cool | |
| CCT (K) | 6020K ~ 8500K | |
| Wavelength | - | |
| Configuration | Rectangle | |
| Flux @ Current/Temperature - Test | 4093 lm (3955 lm ~ 4230 lm) | |
| Current - Test | 21A | |
| Temperature - Test | 85°C | |
| Voltage - Forward (Vf) (Typ) | 3.6V | |
| Lumens/Watt @ Current - Test | 54 lm/W | |
| Current - Max | 28A | |
| CRI (Color Rendering Index) | 75 (Typ) | |
| Viewing Angle | - | |
| Features | With Connector | |
| Size / Dimension | 28.00mm L x 42.00mm W | |
| Height | 5.70mm | |
| Light Emitting Surface (LES) | 4.25mm Diameter | |
| Lens Type | Flat | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CBT-140-WCS-C15-UB120 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CBT-140-WCS-C15-UB120 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of CBT-140-WCS-C15-UB120 is new and unused, you can buy CBT-140-WCS-C15-UB120 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CBT-140-WCS-C15-UB120.
