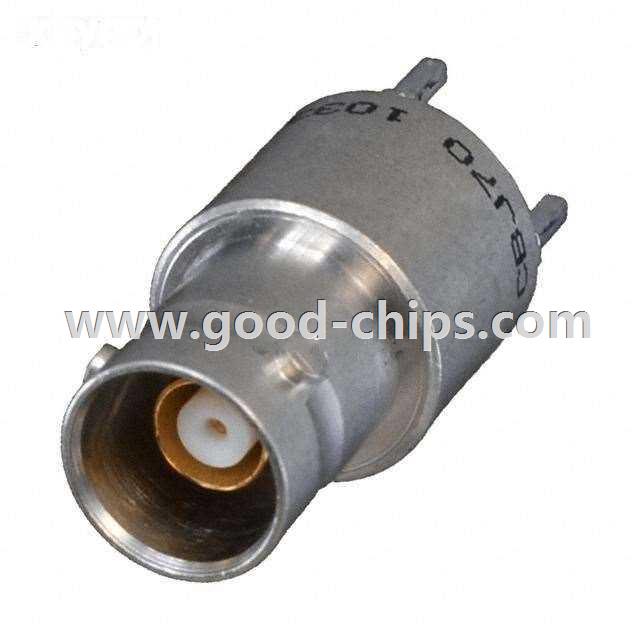

Manufacturer Part Number: | CBJ70 |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9554 Pieces |
Unit Price: | Quote by Email |
Description: | TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Through Hole Solder |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CBJ70 Datasheet |
Internal Part Number | 898-CBJ70 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Configured Solutions Video Patching | |
Online Catalog | TRB | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Cinch Connectivity Solutions Trompeter | |
Series | 70 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | TRB, Twinaxial/Triaxial | |
Connector Type | Jack, Female Socket (Concentric) | |
Contact Termination | Solder | |
Shield Termination | Solder | |
Impedance | Non-Constant | |
Mounting Type | Through Hole | |
Cable Group | - | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 500MHz | |
Features | Three Lug | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Gold | |
Dielectric Material | - | |
Voltage Rating | 400V | |
Operating Temperature | -65°C ~ 165°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CBJ70 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CBJ70 is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of CBJ70 is new and unused, you can buy CBJ70 Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CBJ70.
