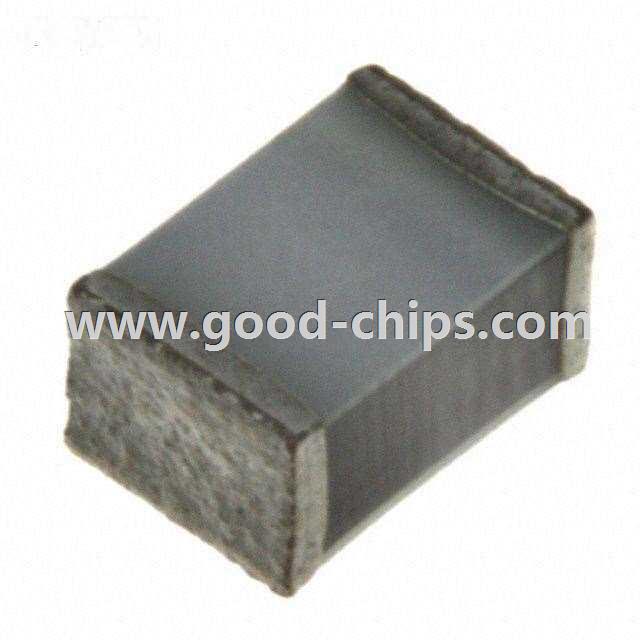

Manufacturer Part Number: | CB037D0224JBA |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Film Capacitors |
Available Quantity: | 35610 Pieces |
Unit Price: | Quote by Email |
Description: | 0.22µF Film Capacitor 40V 63V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1812 (4532 Metric) 0.185" L x 0.126" W (4.70mm x 3.20mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CB037D0224JBA Datasheet |
Internal Part Number | 898-CB037D0224JBA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CB Series | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | AVX Corporation | |
Series | CB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.22µF | |
Tolerance | ±5% | |
Voltage Rating - AC | 40V | |
Voltage Rating - DC | 63V | |
Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Surface Mount | |
Package / Case | 1812 (4532 Metric) | |
Size / Dimension | 0.185" L x 0.126" W (4.70mm x 3.20mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Termination | Solder Pads | |
Lead Spacing | - | |
Applications | General Purpose | |
Features | - | |
Standard Package | 700 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CB037D0224JBA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CB037D0224JBA is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of CB037D0224JBA is new and unused, you can buy CB037D0224JBA AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CB037D0224JBA.
