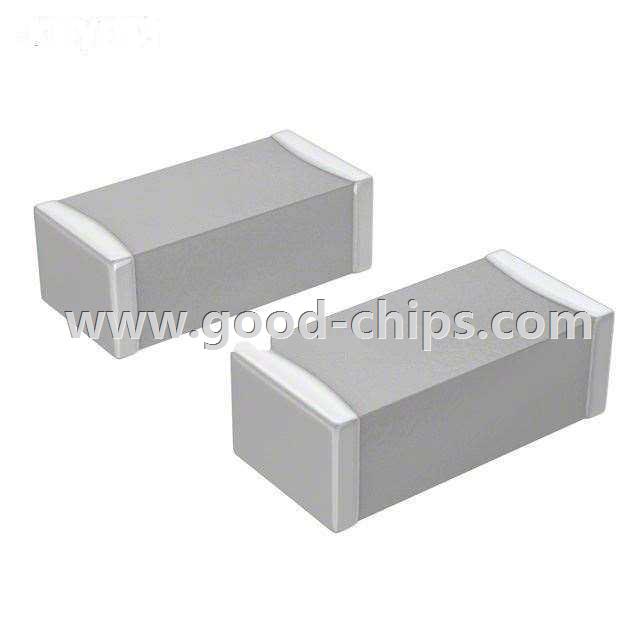

Manufacturer Part Number: | CB017D0103JBA |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Film Capacitors |
Available Quantity: | 12910 Pieces |
Unit Price: | Quote by Email |
Description: | 10000pF Film Capacitor 40V 63V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1206 (3216 Metric) 0.130" L x 0.063" W (3.30mm x 1.60mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CB017D0103JBA Datasheet |
Internal Part Number | 898-CB017D0103JBA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Component Solutions for Smart Meter Applications | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CB Series | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | AVX Corporation | |
Series | CB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 10000pF | |
Tolerance | ±5% | |
Voltage Rating - AC | 40V | |
Voltage Rating - DC | 63V | |
Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Surface Mount | |
Package / Case | 1206 (3216 Metric) | |
Size / Dimension | 0.130" L x 0.063" W (3.30mm x 1.60mm) | |
Height - Seated (Max) | 0.045" (1.15mm) | |
Termination | Solder Pads | |
Lead Spacing | - | |
Applications | General Purpose | |
Features | - | |
Standard Package | 3,900 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CB017D0103JBA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CB017D0103JBA is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of CB017D0103JBA is new and unused, you can buy CB017D0103JBA AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CB017D0103JBA.
