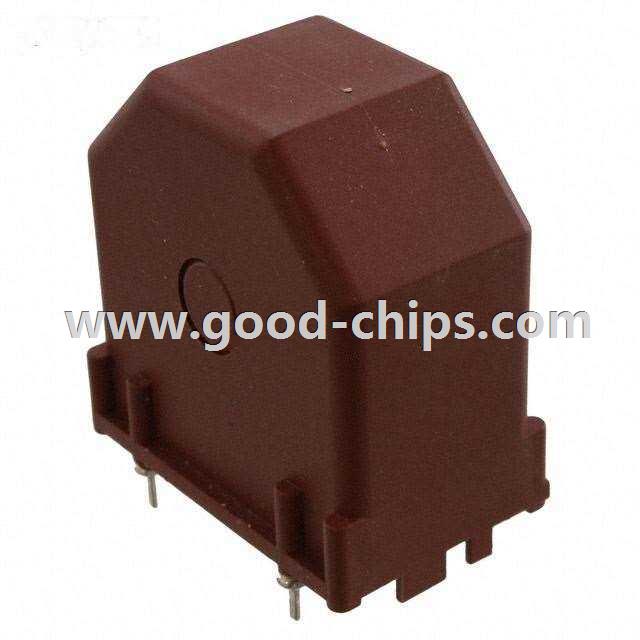

| Manufacturer Part Number: | CAV-16-0.15 |
|---|---|
| Manufacturer: | Amgis, LLC |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 150µH @ 10kHz 2 Line Common Mode Choke Through Hole 16A DCR 3 mOhm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CAV-16-0.15 Datasheet |
| Internal Part Number | 898-CAV-16-0.15 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Amgis, LLC | |
| Series | CA | |
| Packaging | Tray | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 150µH @ 10kHz | |
| Current Rating (Max) | 16A | |
| DC Resistance (DCR) (Max) | 3 mOhm (Typ) | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 1.693" L x 1.102" W (43.00mm x 28.00mm) | |
| Height (Max) | 1.870" (47.50mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CAV-16-0.15 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CAV-16-0.15 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of CAV-16-0.15 is new and unused, you can buy CAV-16-0.15 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CAV-16-0.15.
