| Manufacturer Part Number: | CAT4016VS-T2 |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 16 Output Linear PWM Dimming 80mA 24-QSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CAT4016VS-T2 Datasheet |
| Internal Part Number | 898-CAT4016VS-T2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 27/Jun/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Obsolete | |
| Type | Linear | |
| Topology | Shift Register | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 16 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 5.5V | |
| Current - Output / Channel | 80mA | |
| Frequency | 25MHz | |
| Dimming | PWM | |
| Applications | Signage | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) | |

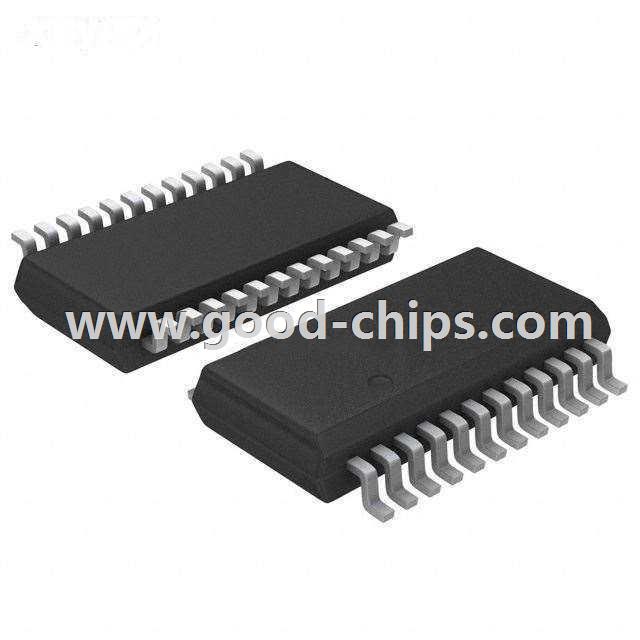

| Supplier Device Package | 24-QSOP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CAT4016VS-T2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CAT4016VS-T2 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CAT4016VS-T2 is new and unused, you can buy CAT4016VS-T2 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CAT4016VS-T2.
