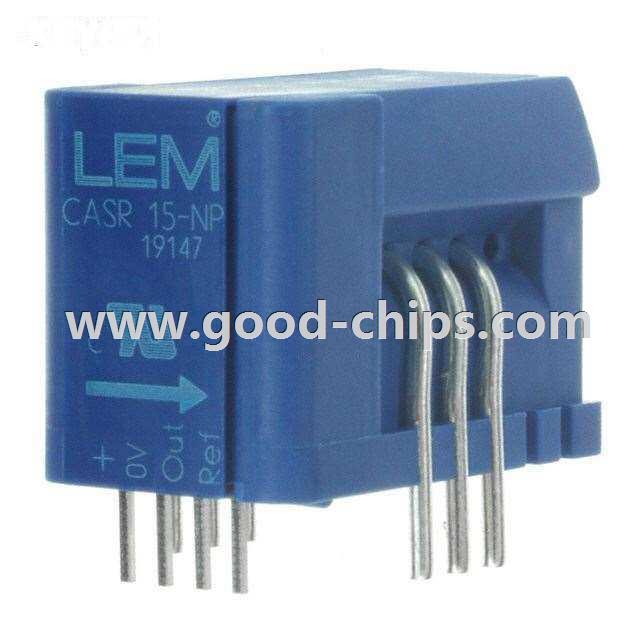

Manufacturer Part Number: | CASR 15-NP |
---|---|
Manufacturer: | LEM USA Inc. |
Product Category: | Current Transducers |
Available Quantity: | 9316 Pieces |
Unit Price: | Quote by Email |
Description: | Current Sensor 15A 1 Channel Flux Gate, Closed Loop Bidirectional Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CASR 15-NP Datasheet |
Internal Part Number | 898-CASR 15-NP | |
Manufacturer Lead time | 6-8 weeks | |
지위 | New & Unused, Original Sealed | |
Product Training Modules | CAS Modules Overview | |
Online Catalog | CASR | |
Category | Sensors, Transducers | |
Family | Current Transducers | |
Manufacturer | LEM USA Inc. | |
Series | CASR | |
Packaging | Tube | |
Part Status | Active | |
For Measuring | AC/DC | |
Sensor Type | Flux Gate, Closed Loop | |
Current - Sensing | 15A | |
Number of Channels | 1 | |
Output | Ratiometric, Voltage | |
Sensitivity | 41.67mV/A | |
Frequency | 300kHz | |
Linearity | ±1% | |
Accuracy | ±0.8% | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Response Time | 0.3µs | |
Current - Supply (Max) | 20mA | |
Operating Temperature | -40°C ~ 85°C | |
Polarization | Bidirectional | |
Mounting Type | Through Hole | |
Package / Case | Module | |
Standard Package | 50 | |
무게 | 0.001 KG | |
신청 | Email for details | |
Replacement Part | CASR 15-NP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CASR 15-NP is in stock for immediate shipping now. We are the distributor of LEM USA Inc. all series components. The condition of CASR 15-NP is new and unused, you can buy CASR 15-NP LEM USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CASR 15-NP.
