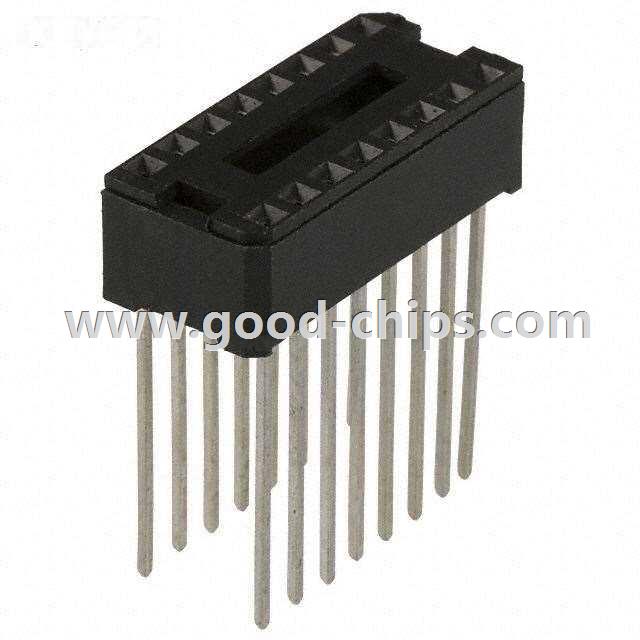

| Manufacturer Part Number: | C8116-04 |
|---|---|
| Manufacturer: | Aries Electronics |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN IC DIP SOCKET 16POS TIN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C8116-04 Datasheet |
| Internal Part Number | 898-C8116-04 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors | |
| Manufacturer | Aries Electronics | |
| Series | Edge-Grip™, C81 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | DIP, 0.3" (7.62mm) Row Spacing | |
| Number of Positions or Pins (Grid) | 16 (2 x 8) | |
| Pitch - Mating | 0.100" (2.54mm) | |
| Contact Finish - Mating | Tin | |
| Contact Finish Thickness - Mating | 200µin (5.08µm) | |
| Contact Material - Mating | Phosphor Bronze | |
| Mounting Type | Through Hole | |
| Features | Closed Frame | |
| Termination | Wire Wrap | |
| Pitch - Post | 0.100" (2.54mm) | |
| Contact Finish - Post | Tin | |
| Contact Finish Thickness - Post | 200µin (5.08µm) | |
| Contact Material - Post | Phosphor Bronze | |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
| Operating Temperature | -55°C ~ 105°C | |
| Termination Post Length | 0.675" (17.15mm) | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 1.5A | |
| Contact Resistance | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C8116-04 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C8116-04 is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of C8116-04 is new and unused, you can buy C8116-04 Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C8116-04.
