| Manufacturer Part Number: | C7D0224N-C |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Rotary Switches |
| Available Quantity: | 9103 Pieces |
| Unit Price: | Quote by Email |

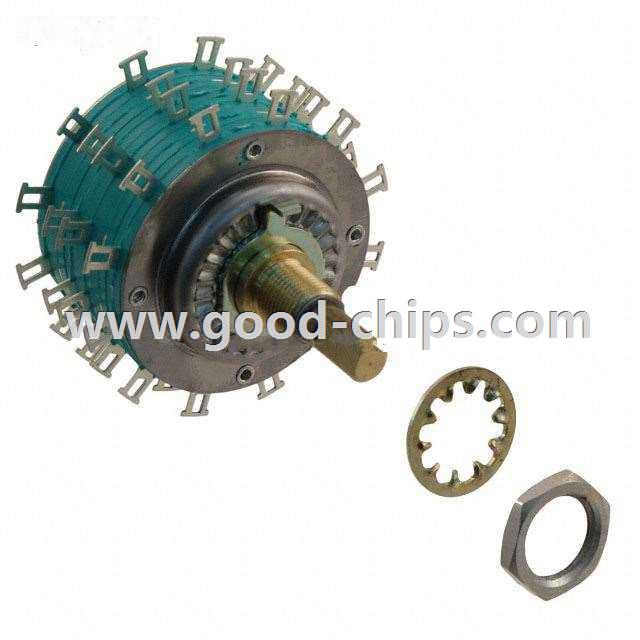

| Description: | Rotary Switch 24 Position SP24T 500mA (AC), 1A (DC) 125VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C7D0224N-C Datasheet |
| Internal Part Number | 898-C7D0224N-C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | C7 Series Adjustable Stop Instr | |
| Product Training Modules | Rotary Switch Design Considerations | |
| Online Catalog | C7 Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Electroswitch | |
| Series | C7 | |
| Part Status | Active | |
| Number of Positions | 24 | |
| Index Stops | Continuous | |
| Number of Decks | 2 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SP24T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 500mA (AC), 1A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Flatted (6.35mm Dia) | |
| Actuator Length | 14.29mm | |
| Angle of Throw | 15° | |
| Contact Material | Brass | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 32.49mm | |
| Panel Cutout Dimensions | Circular - 9.78mm Dia | |
| Operating Force, Torque | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C7D0224N-C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C7D0224N-C is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of C7D0224N-C is new and unused, you can buy C7D0224N-C Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C7D0224N-C.
