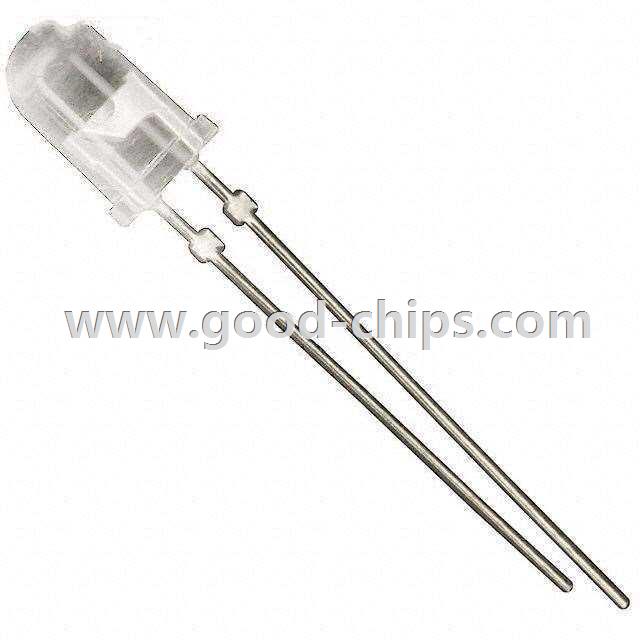

| Manufacturer Part Number: | C503B-RCS-CW0Z0AA1 |
|---|---|
| Manufacturer: | Cree Inc. |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 25409 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 624nm LED Indication - Discrete 2.1V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C503B-RCS-CW0Z0AA1 Datasheet |
| Internal Part Number | 898-C503B-RCS-CW0Z0AA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 5mm Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Cree Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 7500mcd | |
| Lens Style/Size | Round with Domed Top, 5.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 20mA | |
| Viewing Angle | 30° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 624nm | |
| Wavelength - Peak | - | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | 5mm Round | |
| Size / Dimension | - | |
| Height (Max) | 12.90mm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C503B-RCS-CW0Z0AA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C503B-RCS-CW0Z0AA1 is in stock for immediate shipping now. We are the distributor of Cree Inc. all series components. The condition of C503B-RCS-CW0Z0AA1 is new and unused, you can buy C503B-RCS-CW0Z0AA1 Cree Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C503B-RCS-CW0Z0AA1.
