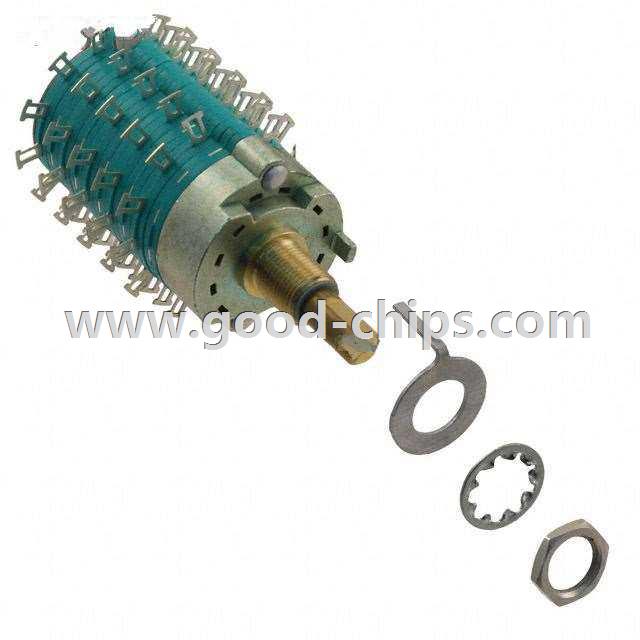

| Manufacturer Part Number: | C4D1006N-A |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Rotary Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 2 ~ 6 Position DP6T 300mA (AC), 500mA (DC) 125VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C4D1006N-A Datasheet |
| Internal Part Number | 898-C4D1006N-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | C4 Series Adjustable Stop Instr | |
| Product Training Modules | Rotary Switch Design Considerations | |
| Featured Product | C4 Series Rotary Switches | |
| Online Catalog | C4 Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Electroswitch | |
| Series | C4 | |
| Part Status | Active | |
| Number of Positions | 2 ~ 6 | |
| Index Stops | Adjustable | |
| Number of Decks | 5 | |
| Number of Poles per Deck | 2 | |
| Circuit per Deck | DP6T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 300mA (AC), 500mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Flatted (6.35mm Dia) | |
| Actuator Length | 12.70mm | |
| Angle of Throw | 30° | |
| Contact Material | Brass | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 48.97mm | |
| Panel Cutout Dimensions | Circular - 9.78mm Dia | |
| Operating Force, Torque | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C4D1006N-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C4D1006N-A is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of C4D1006N-A is new and unused, you can buy C4D1006N-A Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C4D1006N-A.
