| Manufacturer Part Number: | C4BSPBX4300ZBNJ |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Film Capacitors |
| Available Quantity: | 9064 Pieces |
| Unit Price: | Quote by Email |

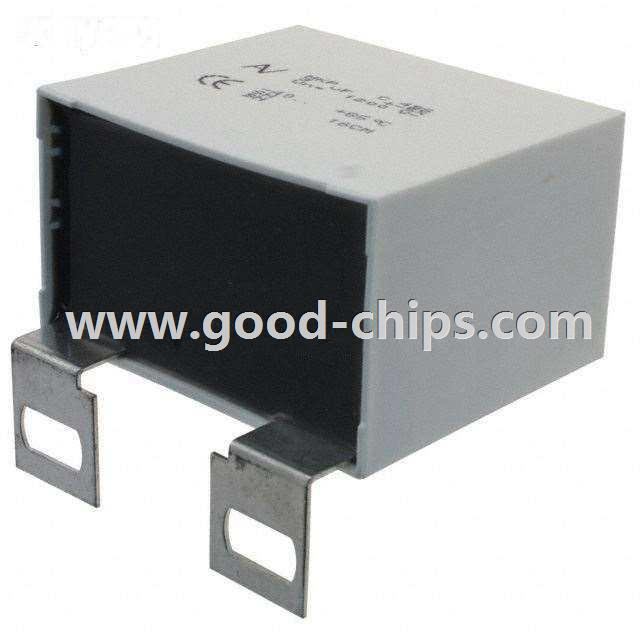

| Description: | 3µF Film Capacitor 630V 1200V (1.2kV) Polypropylene (PP), Metallized Rectangular Box 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C4BSPBX4300ZBNJ Datasheet |
| Internal Part Number | 898-C4BSPBX4300ZBNJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Capacitor Basics- Typical Uses for Capacitors Film Capacitors for Power Supplies and Power Electronics | |
| Online Catalog | C4B Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Kemet | |
| Series | C4B | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 3µF | |
| Tolerance | ±5% | |
| Voltage Rating - AC | 630V | |
| Voltage Rating - DC | 1200V (1.2kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | 2.5 mOhm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Chassis Mount | |
| Package / Case | Rectangular Box | |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) | |
| Height - Seated (Max) | 1.969" (50.00mm) | |
| Termination | Quick Connect, Disconnect | |
| Lead Spacing | 1.457" (37.00mm) | |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber | |
| Features | - | |
| Standard Package | 21 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C4BSPBX4300ZBNJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C4BSPBX4300ZBNJ is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of C4BSPBX4300ZBNJ is new and unused, you can buy C4BSPBX4300ZBNJ Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C4BSPBX4300ZBNJ.
