| Manufacturer Part Number: | C4532X7R1H105M160KA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |

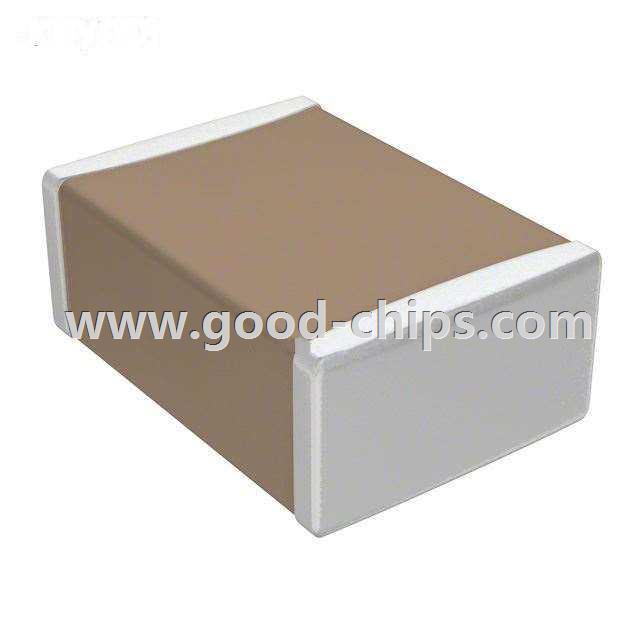

| Description: | 1µF 50V Ceramic Capacitor X7R 1812 (4532 Metric) 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C4532X7R1H105M160KA Datasheet |
| Internal Part Number | 898-C4532X7R1H105M160KA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Capacitance Replacement C Series General Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, General Purpose | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 1µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 50V | |
| Temperature Coefficient | X7R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 1812 (4532 Metric) | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.071" (1.80mm) | |
| Lead Spacing | - | |
| Features | Low ESL | |
| Lead Style | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C4532X7R1H105M160KA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C4532X7R1H105M160KA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C4532X7R1H105M160KA is new and unused, you can buy C4532X7R1H105M160KA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C4532X7R1H105M160KA.
