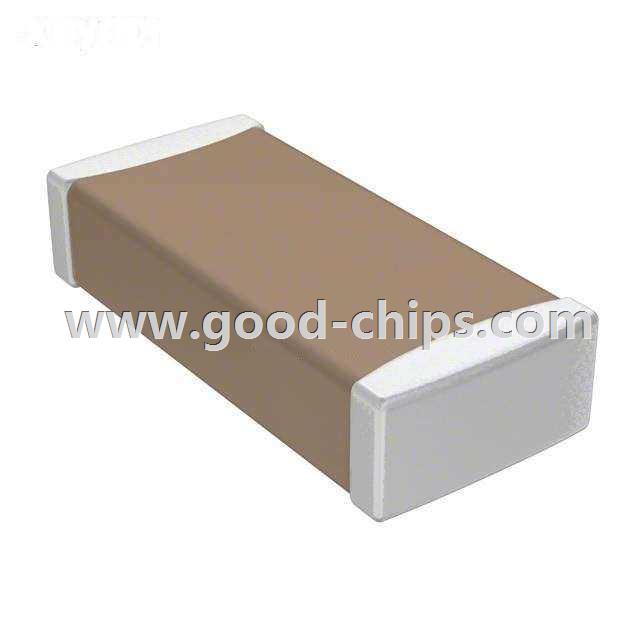

 1.jpg)
| Manufacturer Part Number: | C4520C0G3F100F085KA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 28949 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10pF 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric) 0.177" L x 0.079" W (4.50mm x 2.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C4520C0G3F100F085KA Datasheet |
| Internal Part Number | 898-C4520C0G3F100F085KA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEAT, CCV, and TVCL Design Tools C Series High Voltage Capacitors Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | High Voltage MLCCs | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, High Voltage | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Capacitance | 10pF | |
| Tolerance | ±1pF | |
| Voltage - Rated | 3000V (3kV) | |
| Temperature Coefficient | C0G, NP0 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 1808 (4520 Metric) | |
| Size / Dimension | 0.177" L x 0.079" W (4.50mm x 2.00mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.039" (1.00mm) | |
| Lead Spacing | - | |
| Features | High Voltage | |
| Lead Style | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C4520C0G3F100F085KA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C4520C0G3F100F085KA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C4520C0G3F100F085KA is new and unused, you can buy C4520C0G3F100F085KA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C4520C0G3F100F085KA.
