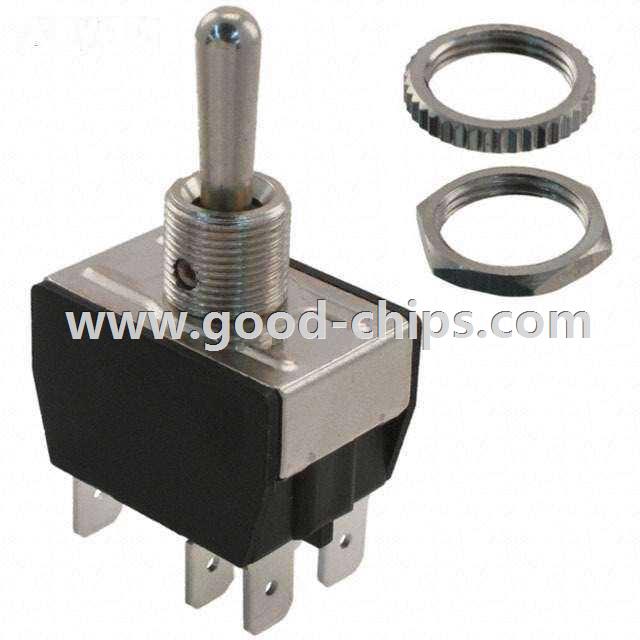

| Manufacturer Part Number: | C3960BA |
|---|---|
| Manufacturer: | Bulgin |
| Product Category: | Toggle Switches |
| Available Quantity: | 9180 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch DPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C3960BA Datasheet |
| Internal Part Number | 898-C3960BA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switches | |
| RoHS Information | RoHS Declaration | |
| Online Catalog | 3900 Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Bulgin | |
| Series | 3900 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 16A (AC), 14A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 36V | |
| Actuator Type | Standard Round | |
| Actuator Length | 17.50mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Panel Cutout Dimensions | Circular - 12.70mm Dia | |
| Bushing Thread | 15/32-32 | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | - | |
| Electrical Life | - | |
| Operating Temperature | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C3960BA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C3960BA is in stock for immediate shipping now. We are the distributor of Bulgin all series components. The condition of C3960BA is new and unused, you can buy C3960BA Bulgin with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C3960BA.
