Manufacturer Part Number: | C3225C0G1H223K125AA |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |

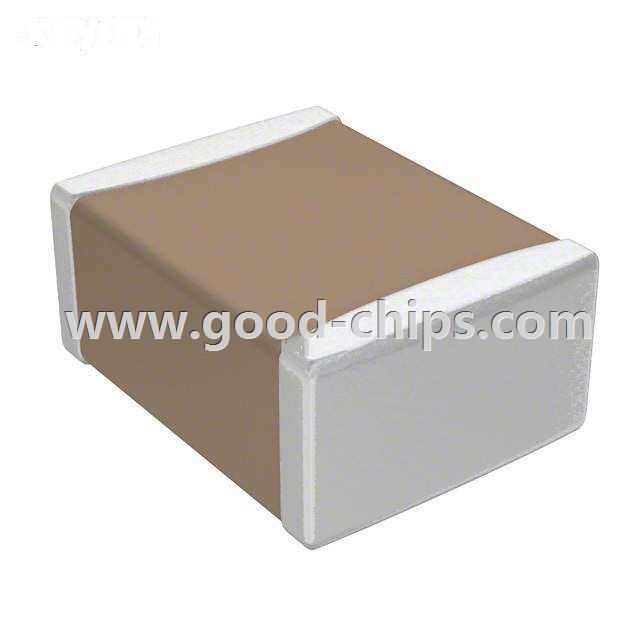

Description: | 0.022µF 50V Ceramic Capacitor C0G, NP0 1210 (3225 Metric) 0.126" L x 0.098" W (3.20mm x 2.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | C3225C0G1H223K125AA Datasheet |
Internal Part Number | 898-C3225C0G1H223K125AA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | C Series General Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | C Series, General Purpose | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | C | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.022µF | |
Tolerance | ±10% | |
Voltage - Rated | 50V | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | 1210 (3225 Metric) | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.057" (1.45mm) | |
Lead Spacing | - | |
Features | Low ESL | |
Lead Style | - | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | C3225C0G1H223K125AA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
C3225C0G1H223K125AA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C3225C0G1H223K125AA is new and unused, you can buy C3225C0G1H223K125AA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C3225C0G1H223K125AA.
