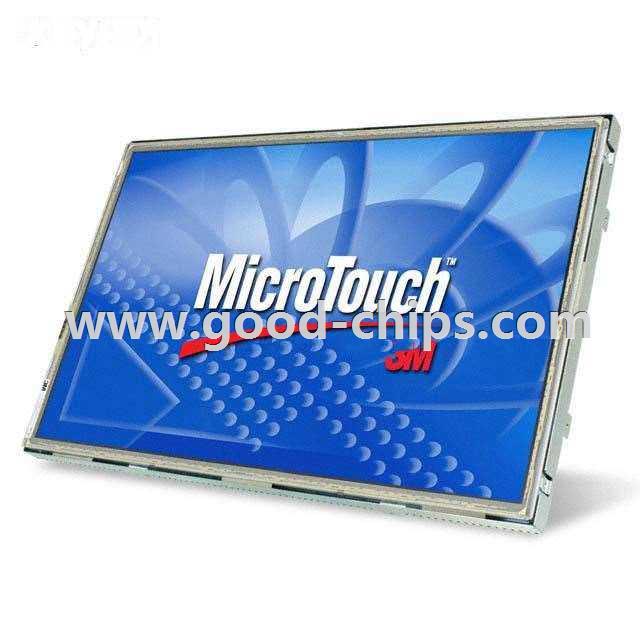

| Manufacturer Part Number: | C2234SW |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Display Modules - LCD, OLED, Graphic |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color DVI, VGA 22" (558.80mm) 1680 x 1050 (WSXGA+) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C2234SW Datasheet |
| Internal Part Number | 898-C2234SW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Perceptive Pixel and 3M Projected Capacitive Technology 3M™ GLOVE TOUCH 3M™ Multi-Touch Speeds 3M™ Multi-User Imagine the Possibilities of 3M™ Multi-Touch | |
| PCN Obsolescence/ EOL | C2234SW, C2254PW 14/Sep/2015 | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED, Graphic | |
| Manufacturer | 3M | |
| Series | - | |
| Part Status | Obsolete | |
| Display Type | TFT - Color | |
| Display Mode | Transmissive | |
| Touchscreen | Capacitive | |
| Diagonal Screen Size | 22" (558.80mm) | |
| Viewing Area | 473.80mm W x 296.10mm H | |
| Backlight | LED - White | |
| Dot Pixels | 1680 x 1050 (WSXGA+) | |
| Interface | DVI, VGA | |
| Graphics Color | Red, Green, Blue (RGB) | |
| Background Color | - | |
| Dot Size | - | |
| Dot Pitch | 0.28mm W x 0.28mm H | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C2234SW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C2234SW is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of C2234SW is new and unused, you can buy C2234SW 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C2234SW.
