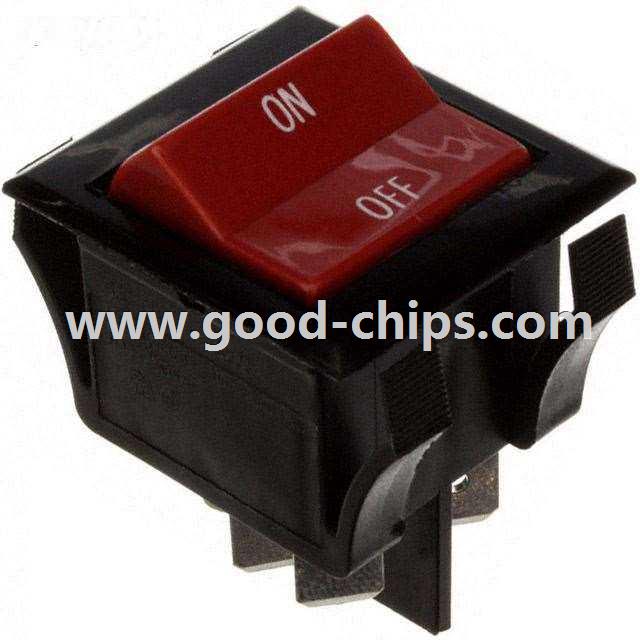

Manufacturer Part Number: | C222J13S205DQA |
---|---|
Manufacturer: | C&K Components |
Product Category: | Rocker Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Rocker Switch DPST 15A (AC) 125V Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | C222J13S205DQA Datasheet |
Internal Part Number | 898-C222J13S205DQA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | C Series Rockers 10/Dec/2012 | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | C&K Components | |
Series | C | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | DPST | |
Switch Function | On-Off | |
Current Rating | 15A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Concave (Standard V) | |
Color - Actuator/Cap | Red | |
Actuator Marking | On - Off, Vertical | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.250" (6.3mm) | |
Ingress Protection | - | |
Features | Positive Detent | |
Panel Cutout Dimensions | Rectangular - 28.50mm x 25.40mm | |
Operating Temperature | -30°C ~ 65°C | |
Mechanical Life | - | |
Electrical Life | 10,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | C222J13S205DQA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
C222J13S205DQA is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of C222J13S205DQA is new and unused, you can buy C222J13S205DQA C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C222J13S205DQA.
