Manufacturer Part Number: | C2012C0G1H332J060AA |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 29010 Pieces |
Unit Price: | Quote by Email |

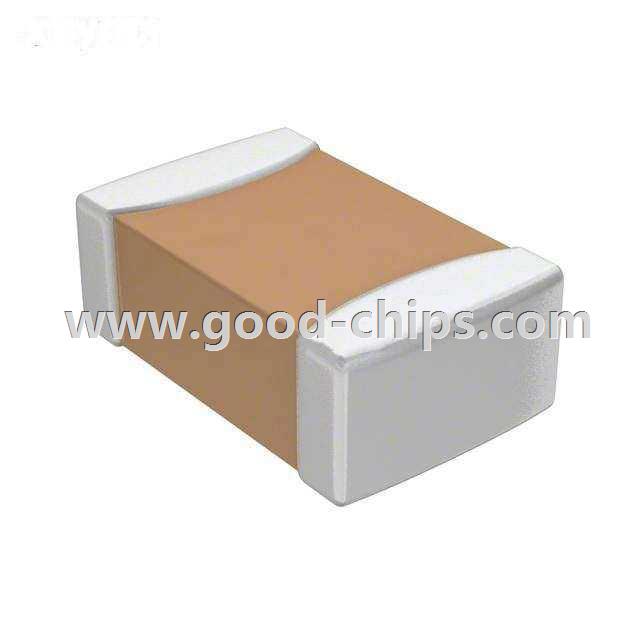

Description: | 3300pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric) 0.079" L x 0.049" W (2.00mm x 1.25mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | C2012C0G1H332J060AA Datasheet |
Internal Part Number | 898-C2012C0G1H332J060AA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | C Series General Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | C Series, General Purpose | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | C | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 3300pF | |
Tolerance | ±5% | |
Voltage - Rated | 50V | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | 0805 (2012 Metric) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.028" (0.70mm) | |
Lead Spacing | - | |
Features | Low ESL | |
Lead Style | - | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | C2012C0G1H332J060AA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
C2012C0G1H332J060AA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C2012C0G1H332J060AA is new and unused, you can buy C2012C0G1H332J060AA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C2012C0G1H332J060AA.
