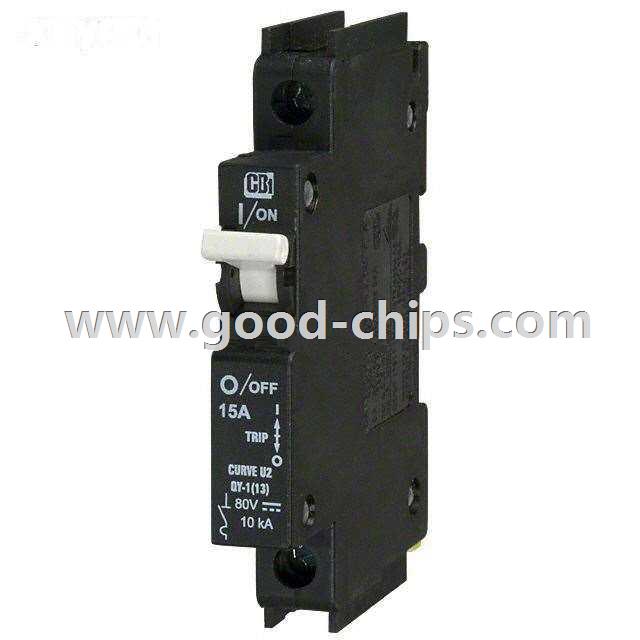

| Manufacturer Part Number: | C15A1P-80VDC |
|---|---|
| Manufacturer: | American Electrical Inc. |
| Product Category: | Circuit Breakers |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | CIR BRKR MAG-HYDR 15A 80VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C15A1P-80VDC Datasheet |
| Internal Part Number | 898-C15A1P-80VDC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | DIN Rail Mounted Circuit Breakers | |
| Video File | American Electrical UL & CSA Approved Fuse Holders and Circuit Breakers | |
| Online Catalog | Circuit Breakers | |
| Category | Circuit Protection | |
| Family | Circuit Breakers | |
| Manufacturer | American Electrical Inc. | |
| Series | - | |
| Part Status | Active | |
| Breaker Type | Magnetic (Hydraulic Delay) | |
| Current Rating | 15A | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 80V | |
| Number of Poles | 1 | |
| Actuator Type | Lever | |
| Illumination | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | DIN Rail | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C15A1P-80VDC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C15A1P-80VDC is in stock for immediate shipping now. We are the distributor of American Electrical Inc. all series components. The condition of C15A1P-80VDC is new and unused, you can buy C15A1P-80VDC American Electrical Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C15A1P-80VDC.
