Manufacturer Part Number: | C1005C0G1H3R9C |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

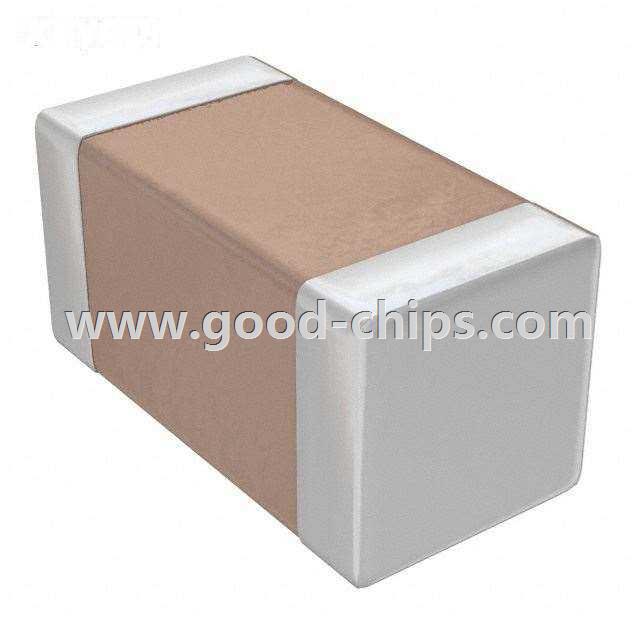

Description: | 3.9pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric) 0.039" L x 0.020" W (1.00mm x 0.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | C1005C0G1H3R9C Datasheet |
Internal Part Number | 898-C1005C0G1H3R9C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | C | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Capacitance | 3.9pF | |
Tolerance | ±0.25pF | |
Voltage - Rated | 50V | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | 0402 (1005 Metric) | |
Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.022" (0.55mm) | |
Lead Spacing | - | |
Features | - | |
Lead Style | - | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | C1005C0G1H3R9C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
C1005C0G1H3R9C is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C1005C0G1H3R9C is new and unused, you can buy C1005C0G1H3R9C TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C1005C0G1H3R9C.
