| Manufacturer Part Number: | C0603JB1E152M030BA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 24010 Pieces |
| Unit Price: | Quote by Email |

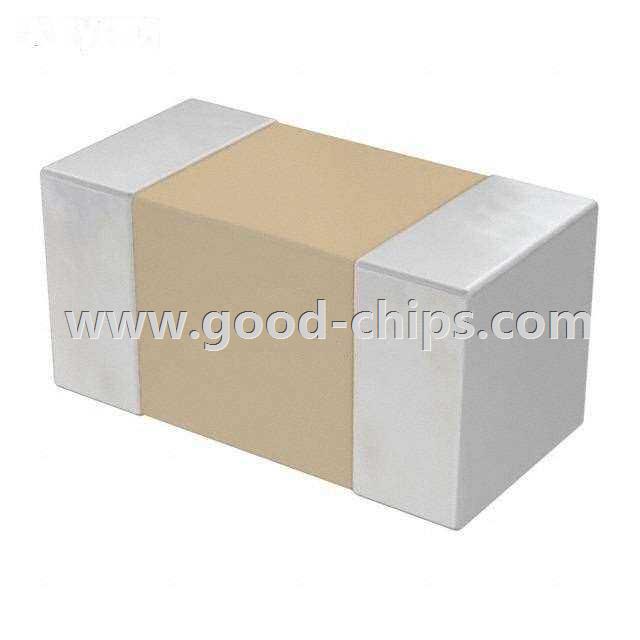

| Description: | 1500pF 25V Ceramic Capacitor JB 0201 (0603 Metric) 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C0603JB1E152M030BA Datasheet |
| Internal Part Number | 898-C0603JB1E152M030BA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | C Series General Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | CH and JB Temperature Coefficient Capacitors | |
| PCN Part Status Change | Life Cycle Status 29/Jul/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, General Purpose | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not Recommended For New Designs | |
| Capacitance | 1500pF | |
| Tolerance | ±20% | |
| Voltage - Rated | 25V | |
| Temperature Coefficient | JB | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -25°C ~ 85°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 0201 (0603 Metric) | |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.013" (0.33mm) | |
| Lead Spacing | - | |
| Features | Low ESL | |
| Lead Style | - | |
| Standard Package | 15,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C0603JB1E152M030BA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C0603JB1E152M030BA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C0603JB1E152M030BA is new and unused, you can buy C0603JB1E152M030BA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C0603JB1E152M030BA.
