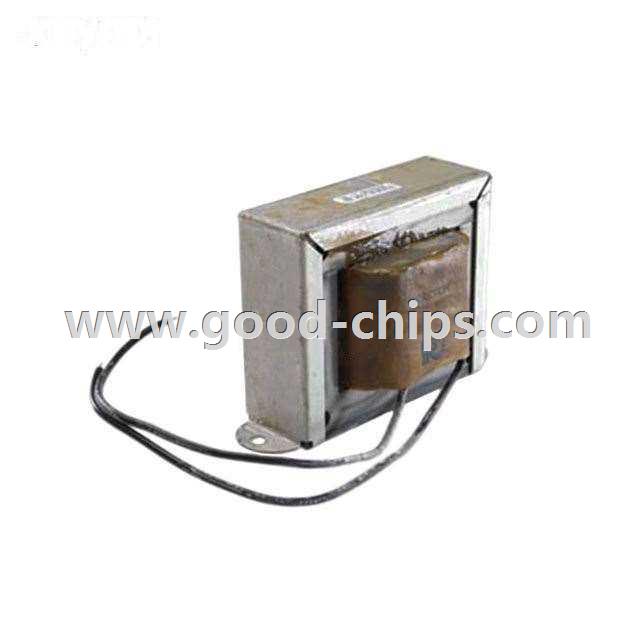

| Manufacturer Part Number: | C-8X |
|---|---|
| Manufacturer: | Triad Magnetics |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 7H Unshielded Wirewound Inductor 75mA 240 Ohm Nonstandard |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C-8X Datasheet |
| Internal Part Number | 898-C-8X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | C-8X | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Triad Magnetics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 7H | |
| Tolerance | -20%, +50% | |
| Current Rating | 75mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 240 Ohm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | - | |
| Frequency - Test | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 3.312" L x 1.750" W (84.12mm x 44.45mm) | |
| Height - Seated (Max) | 1.937" (49.28mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C-8X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C-8X is in stock for immediate shipping now. We are the distributor of Triad Magnetics all series components. The condition of C-8X is new and unused, you can buy C-8X Triad Magnetics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C-8X.
