Manufacturer Part Number: | BZX55C3V9-TR |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Zener Diode 3.9V 500mW ±5% Through Hole DO-35 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BZX55C3V9-TR Datasheet |
Internal Part Number | 898-BZX55C3V9-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Vishay Semiconductor Diodes Division | |
Series | Automotive, AEC-Q101 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 3.9V | |
Tolerance | ±5% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 85 Ohm | |
Current - Reverse Leakage @ Vr | 2µA @ 1V | |
Voltage - Forward (Vf) (Max) @ If | 1.5V @ 200mA | |
Operating Temperature | -65°C ~ 175°C | |
Mounting Type | Through Hole | |

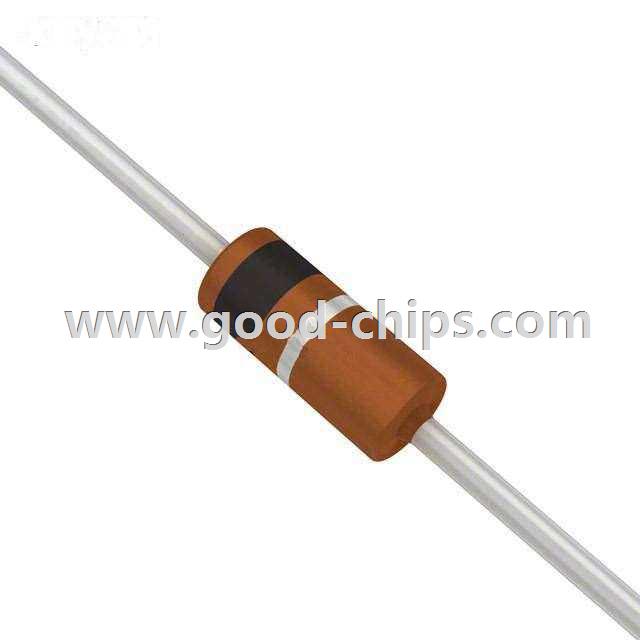

Package / Case | DO-204AH, DO-35, Axial | |
Supplier Device Package | DO-35 | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BZX55C3V9-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BZX55C3V9-TR is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of BZX55C3V9-TR is new and unused, you can buy BZX55C3V9-TR Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BZX55C3V9-TR.
