Manufacturer Part Number: | BZV55C13-TP |
---|---|
Manufacturer: | Micro Commercial Co |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 11510 Pieces |
Unit Price: | Quote by Email |

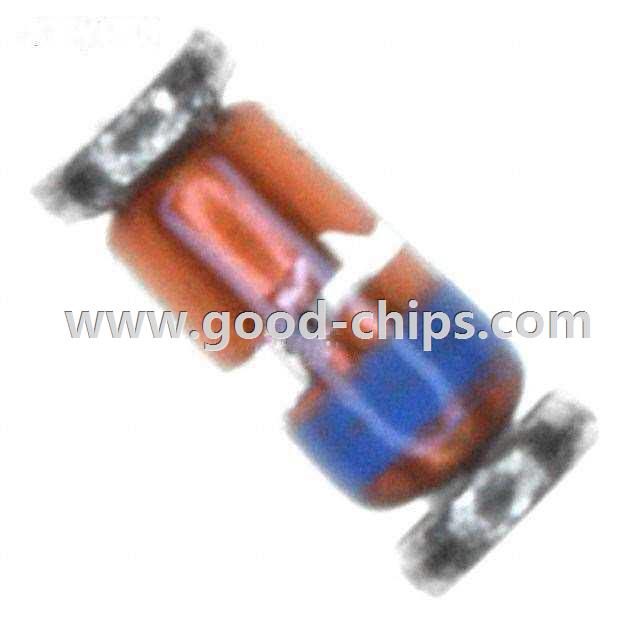

Description: | Zener Diode 13V 500mW ±6% Surface Mount Mini MELF |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BZV55C13-TP Datasheet |
Internal Part Number | 898-BZV55C13-TP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Diode Handling and Mounting | |
Online Catalog | 500mW Zener Diode 2 to 75V | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Micro Commercial Co | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 13V | |
Tolerance | ±6% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 26 Ohm | |
Current - Reverse Leakage @ Vr | 100nA @ 10V | |
Voltage - Forward (Vf) (Max) @ If | 1.5V @ 200mA | |
Operating Temperature | -55°C ~ 150°C | |
Mounting Type | Surface Mount | |
Package / Case | DO-213AC, MINI-MELF, SOD-80 | |
Supplier Device Package | Mini MELF | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BZV55C13-TP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BZV55C13-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of BZV55C13-TP is new and unused, you can buy BZV55C13-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BZV55C13-TP.
