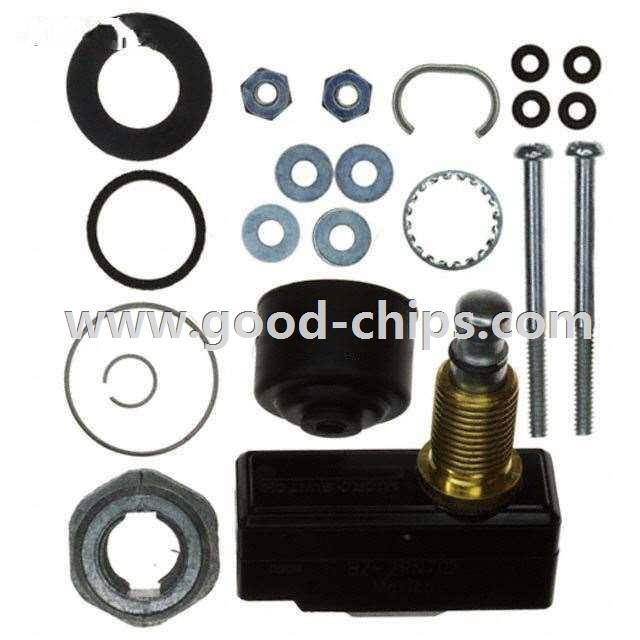

Manufacturer Part Number: | BZ-2RN702 |
---|---|
Manufacturer: | Honeywell Sensing and Productivity Solutions |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACTION SPDT 15A 125V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BZ-2RN702 Datasheet |
Internal Part Number | 898-BZ-2RN702 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Electromechanical Switch Technology | |
Online Catalog | MICRO SWITCH™ BZ Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | Honeywell Sensing and Productivity Solutions | |
Series | BZ | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 15A (AC), 500mA (DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 125V | |
Actuator Type | Overtravel Plunger | |
Mounting Type | Panel Mount | |
Termination Style | Screw Terminal | |
Ingress Protection | - | |
Features | Steel Plunger | |
Operating Force, Torque | 255 ~ 368gf | |
Release Force | 113gf | |
Pretravel | 0.015" (0.4mm) | |
Differential Travel | 0.002" (0.05mm) | |
Overtravel | 0.125" (3.2mm) | |
Operating Position | 1.906" (48.4mm) | |
Mechanical Life | 20,000,000 Cycles | |
Electrical Life | - | |
Operating Temperature | -55°C ~ 85°C | |
Standard Package | 5 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BZ-2RN702 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BZ-2RN702 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of BZ-2RN702 is new and unused, you can buy BZ-2RN702 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BZ-2RN702.
