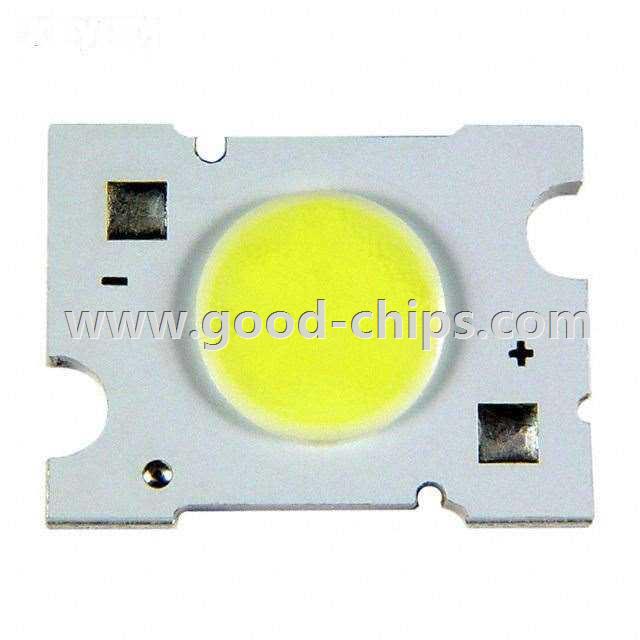

| Manufacturer Part Number: | BXRB-56C0470-B-00 |
|---|---|
| Manufacturer: | Bridgelux |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) LS White, Cool Square |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BXRB-56C0470-B-00 Datasheet |
| Internal Part Number | 898-BXRB-56C0470-B-00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Effective Thermal Mgmt Handling and Assembly Electrical Drive Considerations Reliability Data Reflow Soldering Optical Considerations | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Bridgelux | |
| Series | LS | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | Chip On Board (COB) | |
| Color | White, Cool | |
| CCT (K) | 5600K | |
| Wavelength | - | |
| Configuration | Square | |
| Flux @ Current/Temperature - Test | 520 lm (Typ) | |
| Current - Test | 730mA | |
| Temperature - Test | 25°C | |
| Voltage - Forward (Vf) (Typ) | 6.2V | |
| Lumens/Watt @ Current - Test | 115 lm/W | |
| Current - Max | 1A | |
| CRI (Color Rendering Index) | 70 | |
| Viewing Angle | 140° | |
| Features | - | |
| Size / Dimension | 13.60mm L x 17.80mm W | |
| Height | 4.60mm | |
| Light Emitting Surface (LES) | 8.00mm Diameter | |
| Lens Type | Domed | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BXRB-56C0470-B-00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BXRB-56C0470-B-00 is in stock for immediate shipping now. We are the distributor of Bridgelux all series components. The condition of BXRB-56C0470-B-00 is new and unused, you can buy BXRB-56C0470-B-00 Bridgelux with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BXRB-56C0470-B-00.
