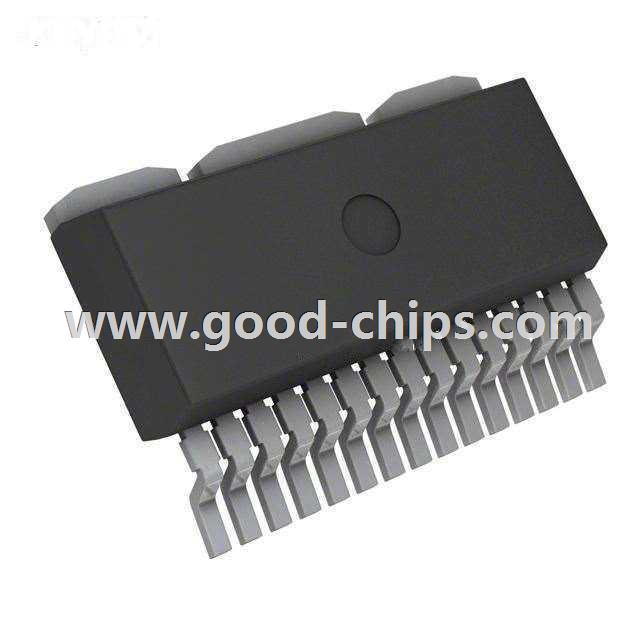

.jpg)
| Manufacturer Part Number: | BTM7811KAUMA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BRIDGE DRIVER PAR TO263-15 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BTM7811KAUMA1 Datasheet |
| Internal Part Number | 898-BTM7811KAUMA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Full, Half-Bridge Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | TrilithIC™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| Output Configuration | Half Bridge (2) | |
| Applications | DC Motors, General Purpose | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | DMOS | |
| Rds On (Typ) | 14 mOhm LS, 26 mOhm HS | |
| Current - Output / Channel | - | |
| Current - Peak Output | 42A | |
| Voltage - Supply | 1.8 V ~ 42 V | |
| Voltage - Load | 1.8 V ~ 42 V | |
| Operating Temperature | -40°C ~ 110°C (TJ) | |
| Features | Status Flag | |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-18 (15 Leads + 3 Tabs) | |
| Supplier Device Package | PG-TO263-15 | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BTM7811KAUMA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BTM7811KAUMA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of BTM7811KAUMA1 is new and unused, you can buy BTM7811KAUMA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BTM7811KAUMA1.
