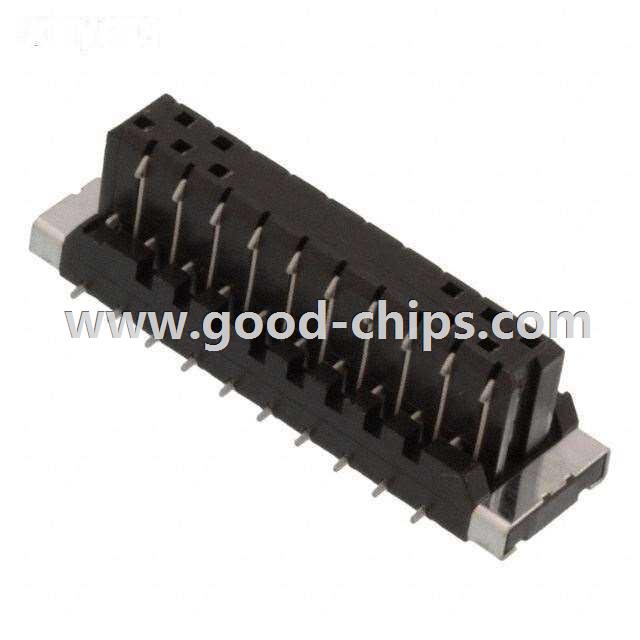

Manufacturer Part Number: | BTFW20P-3SSTE1LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Position Connector Plug, Center Strip Contacts Surface Mount Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BTFW20P-3SSTE1LF Datasheet |
Internal Part Number | 898-BTFW20P-3SSTE1LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | BTFW Reel Version 02/May/2013 | |
PCN Assembly/Origin | BTFW Series 03/Sept/2010 | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Amphenol FCI | |
Series | BTFW | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 20 | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Solder Retention | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Mated Stacking Heights | - | |
Height Above Board | 0.295" (7.50mm) | |
Standard Package | 700 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BTFW20P-3SSTE1LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BTFW20P-3SSTE1LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of BTFW20P-3SSTE1LF is new and unused, you can buy BTFW20P-3SSTE1LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BTFW20P-3SSTE1LF.
