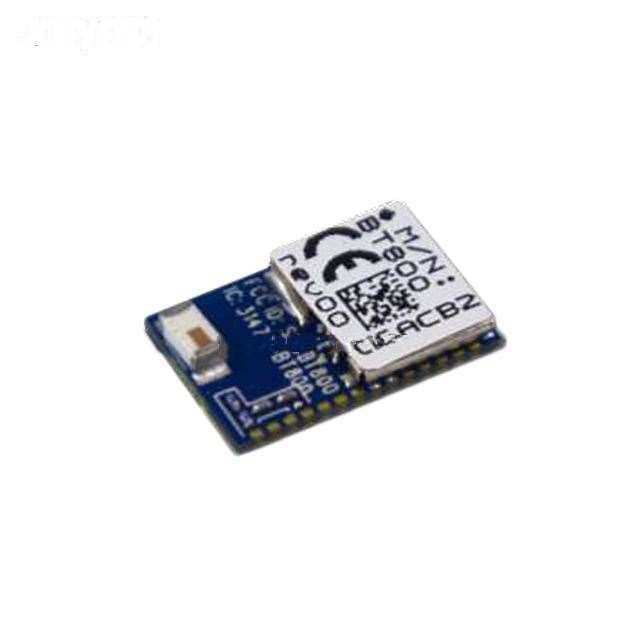

| Manufacturer Part Number: | BT800-ST-01-T/R |
|---|---|
| Manufacturer: | Laird - Embedded Wireless Solutions |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9691 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE BLUETOOTH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BT800-ST-01-T/R Datasheet |
| Internal Part Number | 898-BT800-ST-01-T/R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | BT800 Series | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Laird - Embedded Wireless Solutions | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v4.0 Dual Mode | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | 3Mbps | |
| Power - Output | 8dBm | |
| Sensitivity | -92dBm | |
| Serial Interfaces | I²C, SPI, USB | |
| Antenna Type | Not Included | |
| Memory Size | - | |
| Voltage - Supply | 1.7 V ~ 3.6 V | |
| Current - Receiving | - | |
| Current - Transmitting | 80mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -30°C ~ 85°C | |
| Package / Case | 28-SMD Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BT800-ST-01-T/R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BT800-ST-01-T/R is in stock for immediate shipping now. We are the distributor of Laird - Embedded Wireless Solutions all series components. The condition of BT800-ST-01-T/R is new and unused, you can buy BT800-ST-01-T/R Laird - Embedded Wireless Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BT800-ST-01-T/R.
