| Manufacturer Part Number: | BSZ076N06NS3GATMA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 60V 20A TSDSON-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BSZ076N06NS3GATMA1 Datasheet |
| Internal Part Number | 898-BSZ076N06NS3GATMA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Other | Multiple Changes 09/Jul/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | OptiMOS™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | |
| Rds On (Max) @ Id, Vgs | 7.6 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 35µA | |
| Gate Charge (Qg) @ Vgs | 50nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 4000pF @ 30V | |
| Power - Max | 69W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

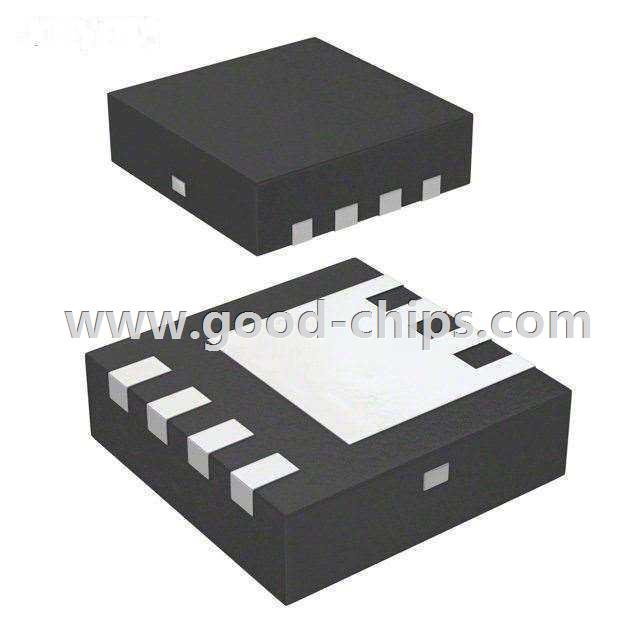

| Package / Case | 8-PowerVDFN | |
| Supplier Device Package | PG-TSDSON-8 (3.3x3.3) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BSZ076N06NS3GATMA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BSZ076N06NS3GATMA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of BSZ076N06NS3GATMA1 is new and unused, you can buy BSZ076N06NS3GATMA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BSZ076N06NS3GATMA1.
