| Manufacturer Part Number: | BSP52 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN DARL 80V 0.8A SOT-223 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BSP52 Datasheet |
| Internal Part Number | 898-BSP52 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | NPN Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | NPN - Darlington | |
| Current - Collector (Ic) (Max) | 800mA | |
| Voltage - Collector Emitter Breakdown (Max) | 80V | |
| Vce Saturation (Max) @ Ib, Ic | 1.3V @ 500µA, 500mA | |
| Current - Collector Cutoff (Max) | 10µA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 500mA, 10V | |
| Power - Max | 1W | |
| Frequency - Transition | - | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-261-4, TO-261AA | |

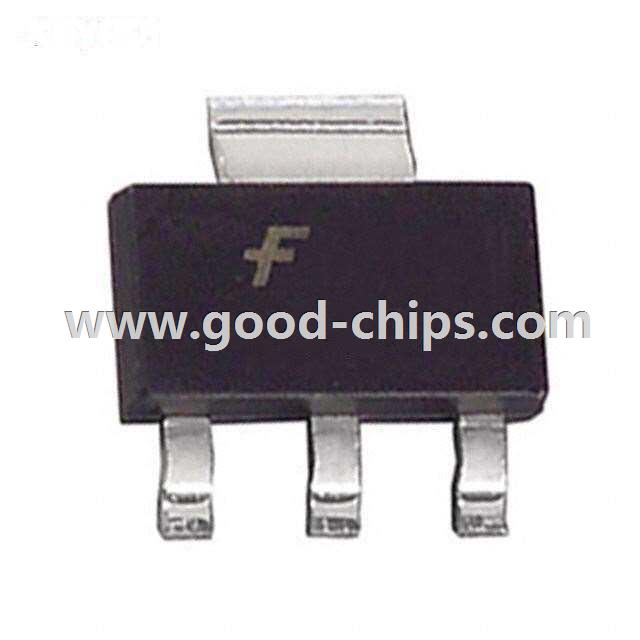

| Supplier Device Package | SOT-223-4 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BSP52 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BSP52 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of BSP52 is new and unused, you can buy BSP52 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BSP52.
