Manufacturer Part Number: | BS-31-10-P |
---|---|
Manufacturer: | 3M |
Product Category: | Terminals - Spade Connectors |
Available Quantity: | 11590 Pieces |
Unit Price: | Quote by Email |

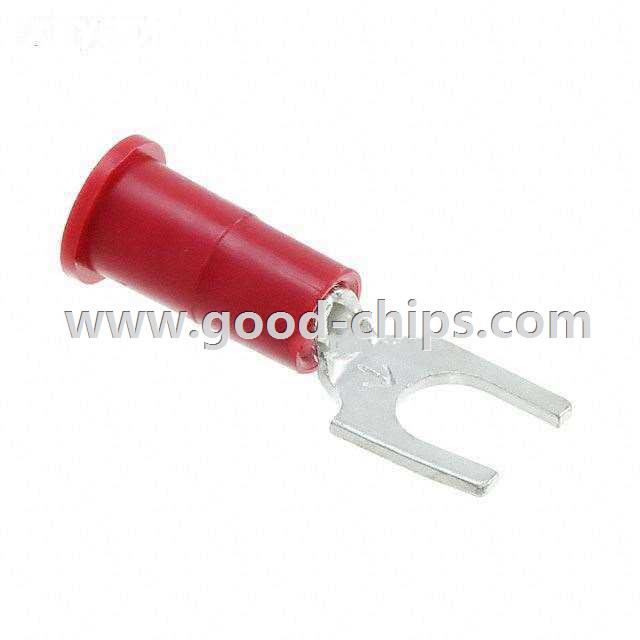

Description: | Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BS-31-10-P Datasheet |
Internal Part Number | 898-BS-31-10-P | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Scotchlok™ Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Spade Connectors | |
Manufacturer | 3M | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Standard | |
Stud/Tab Size | 10 Stud | |
Width - Outer Edges | 0.300" (7.62mm) | |
Length - Overall | 0.850" (21.59mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 18-22 AWG | |
Insulation | Insulated | |
Features | Butted Seam | |
Color | Red | |
Contact Finish | Tin | |
Contact Material | Copper, ETP | |
Insulation Diameter | 0.145" (3.68mm) | |
Material - Insulation | Vinyl | |
Length - Ring Center to Termination | 0.250" (6.35mm) | |
Length - Termination | 0.450" (11.43mm) | |
Tongue Inside Opening | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BS-31-10-P | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BS-31-10-P is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of BS-31-10-P is new and unused, you can buy BS-31-10-P 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BS-31-10-P.
