Manufacturer Part Number: | BRC2518T1R5M |
---|---|
Manufacturer: | Taiyo Yuden |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

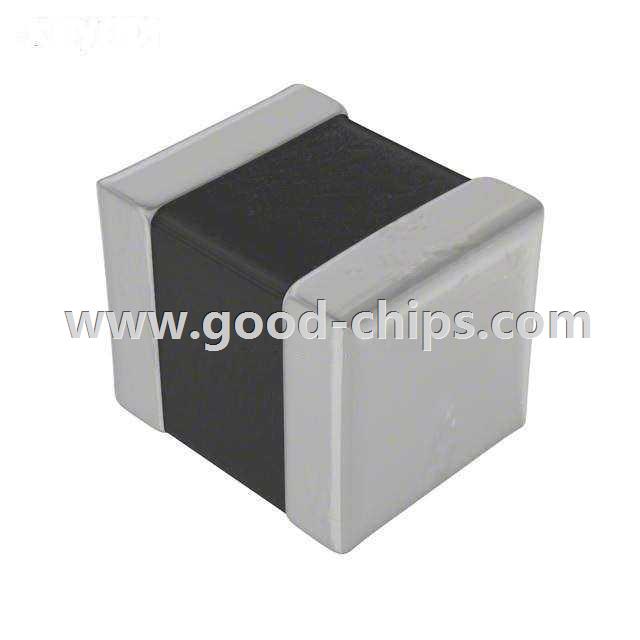

Description: | 1.5µH Unshielded Wirewound Inductor 1.3A 80 mOhm 1007 (2518 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BRC2518T1R5M Datasheet |
Internal Part Number | 898-BRC2518T1R5M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Taiyo Yuden | |
Series | BR | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | - | |
Inductance | 1.5µH | |
Tolerance | ±20% | |
Current Rating | 1.3A | |
Current - Saturation | 2.1A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 80 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | 230MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1007 (2518 Metric) | |
Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) | |
Height - Seated (Max) | 0.079" (2.00mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BRC2518T1R5M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BRC2518T1R5M is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of BRC2518T1R5M is new and unused, you can buy BRC2518T1R5M Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BRC2518T1R5M.
