| Manufacturer Part Number: | BQ24100RHLRG4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Battery Chargers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BATT CHARGER LI-ION 20QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BQ24100RHLRG4 Datasheet |
| Internal Part Number | 898-BQ24100RHLRG4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Battery Management Part 1 Battery Management Part 2 Battery Management Part 3 Battery Management Part 4 Battery Management Part 5 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Chargers | |
| Manufacturer | Texas Instruments | |
| Series | bqSWITCHER™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Battery Chemistry | Lithium-Ion/Polymer | |
| Number of Cells | 1 | |
| Current - Charging | Constant - Programmable | |
| Programmable Features | Current, Timer | |
| Fault Protection | Over Temperature, Over Voltage | |
| Charge Current - Max | 2A | |
| Battery Pack Voltage | 4.2V | |
| Voltage - Supply (Max) | 16V | |
| Interface | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

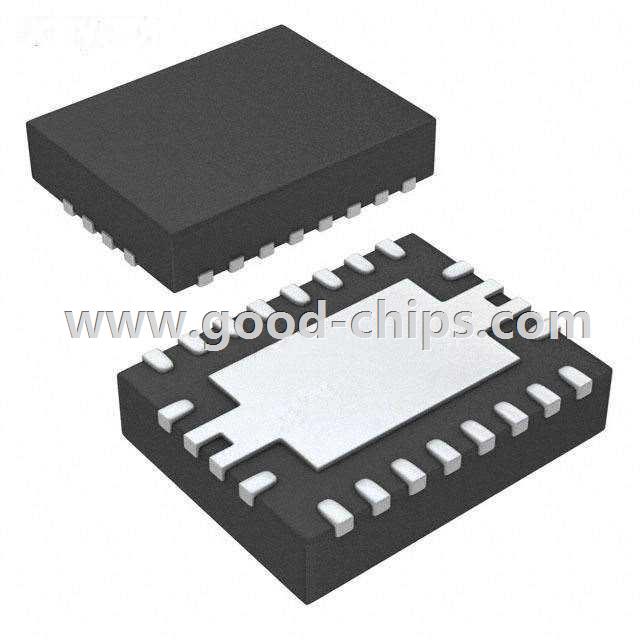

| Package / Case | 20-VFQFN Exposed Pad | |
| Supplier Device Package | 20-VQFN (3.5x4.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BQ24100RHLRG4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BQ24100RHLRG4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of BQ24100RHLRG4 is new and unused, you can buy BQ24100RHLRG4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BQ24100RHLRG4.
