Manufacturer Part Number: | BPF2012LL01R5000A |
---|---|
Manufacturer: | Yageo |
Product Category: | RF Filters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | BAND PASS FILTER 5G |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BPF2012LL01R5000A Datasheet |
Internal Part Number | 898-BPF2012LL01R5000A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Wireless Components | |
Online Catalog | 2012 Series | |
Category | Filters | |
Family | RF Filters | |
Manufacturer | Yageo | |
Series | 2012 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency | 5.425GHz Center | |
Bandwidth | - | |
Filter Type | Band Pass | |
Ripple | 0.6dB | |
Insertion Loss | 1.5dB | |

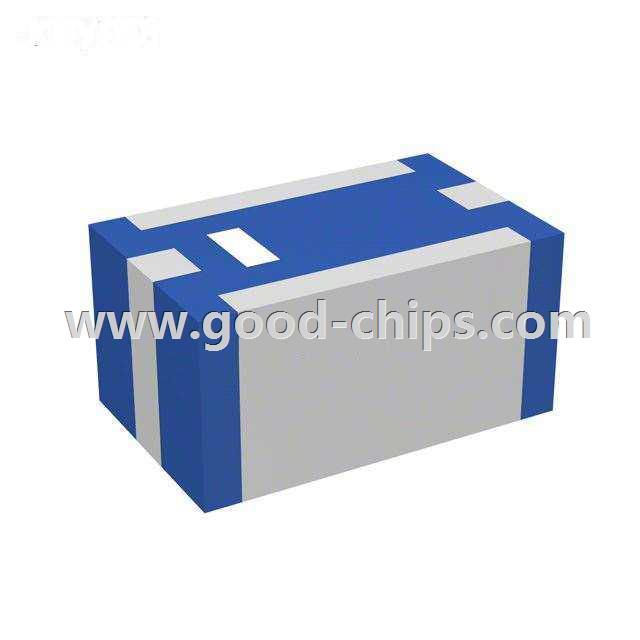

Package / Case | 0805 (2012 Metric), 4 PC Pad | |
Mounting Type | Surface Mount | |
Height (Max) | 0.045" (1.15mm) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BPF2012LL01R5000A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BPF2012LL01R5000A is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of BPF2012LL01R5000A is new and unused, you can buy BPF2012LL01R5000A Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BPF2012LL01R5000A.
