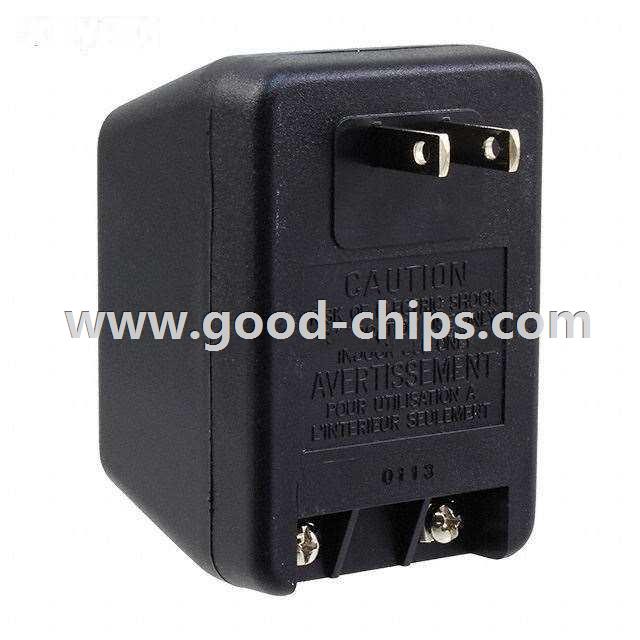

BPD2F

BPD2F
Manufacturer Part Number:BPD2F
Manufacturer:
Product Category:AC AC Wall Adapters
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:16VAC 1.25A AC/AC External Wall Mount (Class II) Adapter Fixed Blade Input
Lead Free Status / RoHS Status:Lead free by exemption / RoHS compliant by exemption
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: BPD2F Datasheet
BPD2F´s Parameters
Internal Part Number898-BPD2F
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryPower Supplies - External/Internal (Off-Board)
FamilyAC AC Wall Adapters
ManufacturerHammond Manufacturing
SeriesBPD2x
Part StatusActive
Region UtilizedNorth America
FormWall Mount (Class II)
Input TypeFixed Blade
Voltage - Input120VAC
Voltage - Output16VAC
Current - Output (Max)1.25A
Power (Watts)20W
No Load Power Consumption-
ApplicationsITE (Commercial)
Efficiency-
Operating Temperature-
Output ConnectorScrew Terminal
Size / Dimension2.13" L x 2.44" W x 2.75" H (54.1mm x 62.0mm x 70.0mm)
ApprovalsCSA, UL
Power (Watts) - Max20W
Input ConnectorNEMA 1-15P
Cord Length-
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartBPD2F
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

BPD2F is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of BPD2F is new and unused, you can buy BPD2F Hammond Manufacturing with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for BPD2F.
