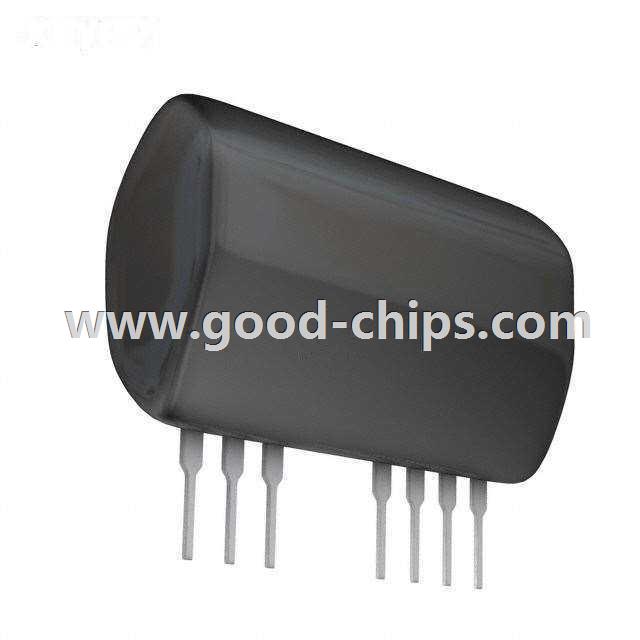

Manufacturer Part Number: | BP5811 |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC CONV DC/DC VARI OUTPUT SIP9 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BP5811 Datasheet |
Internal Part Number | 898-BP5811 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 18/Sep/2014 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Rohm Semiconductor | |
Series | BP5811 | |
Packaging | Tray | |
Part Status | Obsolete | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 19V | |
Voltage - Input (Max) | 21V | |
Voltage - Output 1 | 19V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 300mA | |
Power (Watts) - Manufacture Series | 5W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | - | |
Mounting Type | Through Hole | |
Package / Case | 9-SIP Module (7 Leads) | |
Size / Dimension | 1.09" L x 0.30" W x 0.63" H (27.7mm x 7.6mm x 16.0mm) | |
Operating Temperature | -20°C ~ 80°C | |
Efficiency | - | |
Power (Watts) - Max | 5.7W | |
Standard Package | 150 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BP5811 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BP5811 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BP5811 is new and unused, you can buy BP5811 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BP5811.
