| Manufacturer Part Number: | BNCS007C00 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9165 Pieces |
| Unit Price: | Quote by Email |

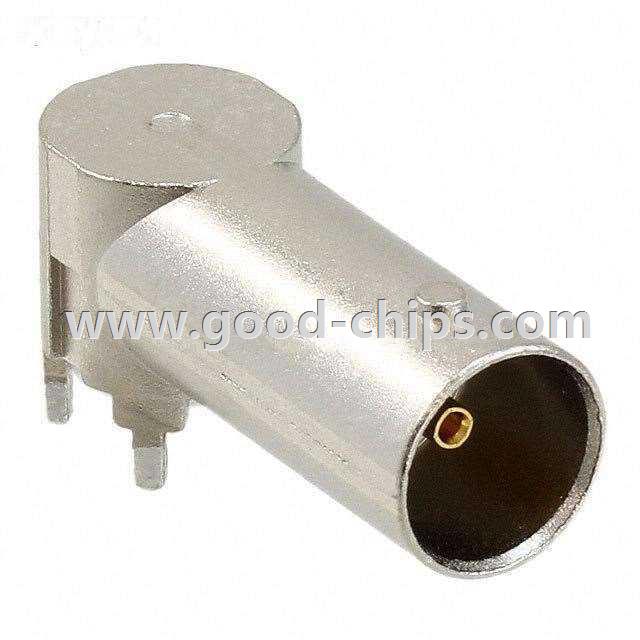

| Description: | BNC Connector Jack, Female Socket 75 Ohm Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BNCS007C00 Datasheet |
| Internal Part Number | 898-BNCS007C00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | JAE Electronics | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | BNC | |
| Connector Type | Jack, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 75 Ohm | |
| Mounting Type | Through Hole, Right Angle | |
| Cable Group | - | |
| Fastening Type | Bayonet Lock | |
| Frequency - Max | 2.4GHz | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Zinc Alloy | |
| Body Finish | Nickel | |
| Center Contact Material | Phosphor Bronze | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BNCS007C00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BNCS007C00 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of BNCS007C00 is new and unused, you can buy BNCS007C00 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BNCS007C00.
