| Manufacturer Part Number: | BMS3003-1E |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9038 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 60V 78A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BMS3003-1E Datasheet |
| Internal Part Number | 898-BMS3003-1E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Additional Wafer Fab Site 11/Aug/2014 | |
| Online Catalog | P-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate, 4V Drive | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 78A (Ta) | |
| Rds On (Max) @ Id, Vgs | 6.5 mOhm @ 39A, 10V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 285nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 13200pF @ 20V | |
| Power - Max | 2W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

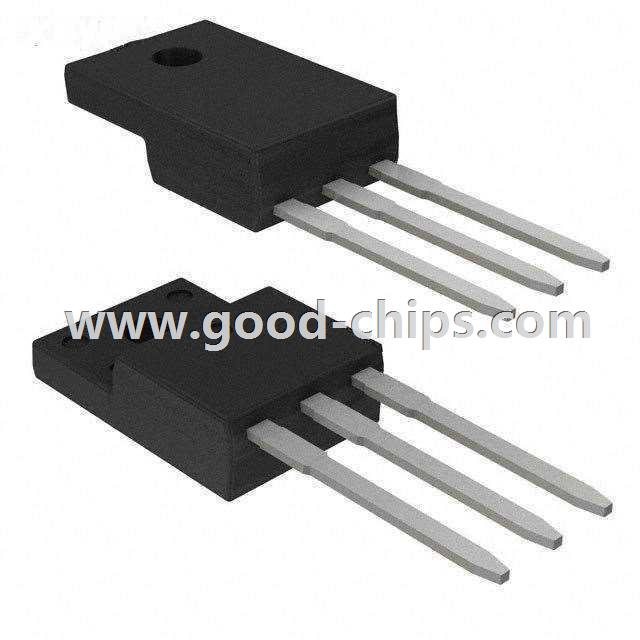

| Package / Case | TO-220-3 Full Pack | |
| Supplier Device Package | TO-220F-3SG | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BMS3003-1E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BMS3003-1E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of BMS3003-1E is new and unused, you can buy BMS3003-1E ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BMS3003-1E.
