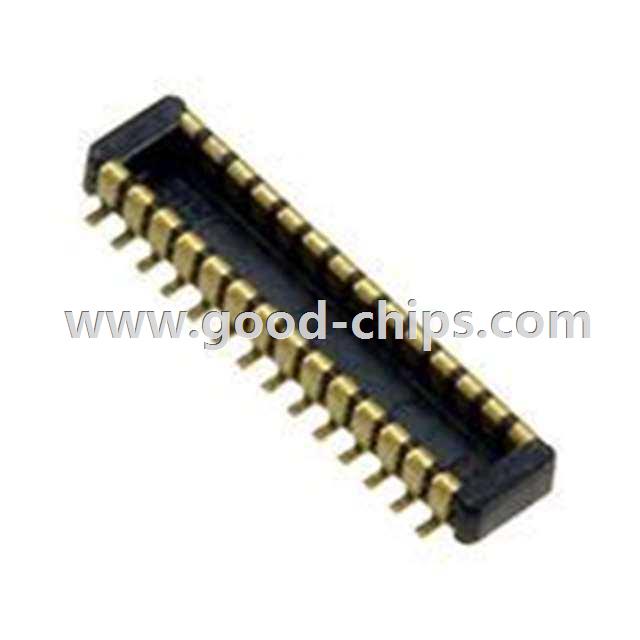

| Manufacturer Part Number: | BM20B(0.8)-24DP-0.4V(53) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BM20B(0.8)-24DP-0.4V(53) Datasheet |
| Internal Part Number | 898-BM20B(0.8)-24DP-0.4V(53) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Smart Watch Connector - Hirose | |
| Featured Product | BM20 0.4 mm Pitch Board-to-Board/Board-to-FPC Micro-Miniture Board to Board Connectors | |
| Online Catalog | BM20 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | BM20 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Header, Outer Shroud Contacts | |
| Number of Positions | 24 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 0.8mm | |
| Height Above Board | 0.026" (0.65mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BM20B(0.8)-24DP-0.4V(53) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BM20B(0.8)-24DP-0.4V(53) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of BM20B(0.8)-24DP-0.4V(53) is new and unused, you can buy BM20B(0.8)-24DP-0.4V(53) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BM20B(0.8)-24DP-0.4V(53).
