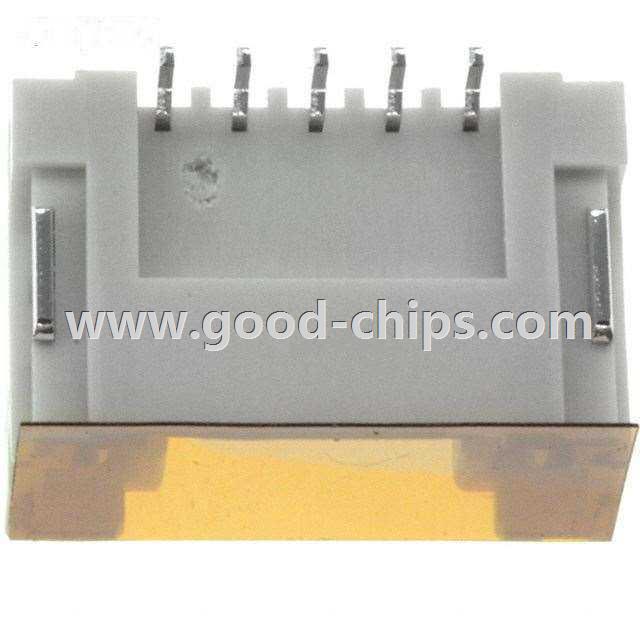

Manufacturer Part Number: | BM05B-ZESS-TBT(LF)(SN) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 21010 Pieces |
Unit Price: | Quote by Email |
Description: | 5 Positions Header, Shrouded Connector 0.059" (1.50mm) Surface Mount Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BM05B-ZESS-TBT(LF)(SN) Datasheet |
Internal Part Number | 898-BM05B-ZESS-TBT(LF)(SN) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | ZE Connectors | |
Featured Product | ZE Series Connectors | |
Online Catalog | ZE Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | JST Sales America Inc. | |
Series | ZE | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Contact Type | Outer Shroud Contact | |
Connector Type | Header, Shrouded | |
Number of Positions | 5 | |
Number of Positions Loaded | All | |
Pitch | 0.059" (1.50mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | - | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Fastening Type | Locking Ramp | |
Features | Solder Retention | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Natural | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BM05B-ZESS-TBT(LF)(SN) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BM05B-ZESS-TBT(LF)(SN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of BM05B-ZESS-TBT(LF)(SN) is new and unused, you can buy BM05B-ZESS-TBT(LF)(SN) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BM05B-ZESS-TBT(LF)(SN).
