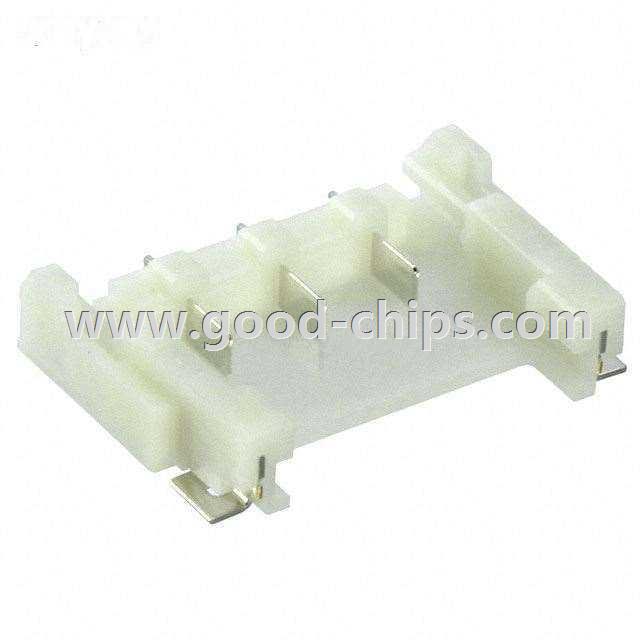

Manufacturer Part Number: | BM03B-LENSS-A-TB(HF) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Solid State Lighting Connectors |
Available Quantity: | 10510 Pieces |
Unit Price: | Quote by Email |
Description: | SSL Connector 3 Position Header, Male Pins Board to Cable/Wire 0.118" (3.00mm) Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BM03B-LENSS-A-TB(HF) Datasheet |
Internal Part Number | 898-BM03B-LENSS-A-TB(HF) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Featured Product | LEN Series Wire-to-Board Connectors | |
Online Catalog | LEN Series | |
Category | Connectors, Interconnects | |
Family | Solid State Lighting Connectors | |
Manufacturer | JST Sales America Inc. | |
Series | LEN | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Style | Board to Cable/Wire | |
Connector Type | Header, Male Pins | |
Number of Positions | 3 | |
Mounting Type | Surface Mount, Right Angle | |
Termination | Solder | |
Pitch | 0.118" (3.00mm) | |
Fastening Type | - | |
Features | Solder Retention | |
Housing Color | Natural | |
Wire Gauge | - | |
Contact Material | Copper Alloy | |
Contact Finish | Tin | |
Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | 300V | |
Current Rating | 3A (22 AWG) | |
Ingress Protection | - | |
Mating Cycles | - | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BM03B-LENSS-A-TB(HF) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BM03B-LENSS-A-TB(HF) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of BM03B-LENSS-A-TB(HF) is new and unused, you can buy BM03B-LENSS-A-TB(HF) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BM03B-LENSS-A-TB(HF).
