| Manufacturer Part Number: | BK1-S505H-2-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 12147 Pieces |
| Unit Price: | Quote by Email |

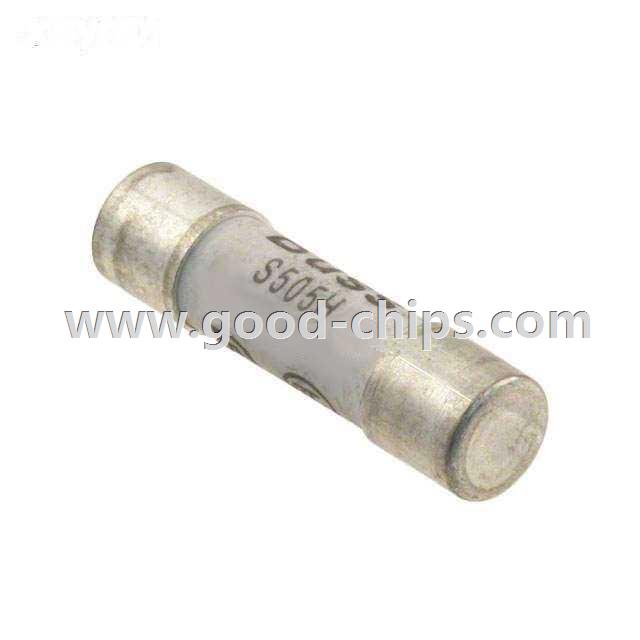

| Description: | FUSE CERM 2A 600VAC 400VDC 5X20 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BK1-S505H-2-R Datasheet |
| Internal Part Number | 898-BK1-S505H-2-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 500-600 VAC/400 VDC 5X20mm Fuses | |
| Online Catalog | S505H Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | S505H | |
| Packaging | Bulk | |
| Part Status | Active | |
| Fuse Type | Cartridge, Ceramic | |
| Current Rating | 2A | |
| Voltage Rating - AC | 600V | |
| Voltage Rating - DC | 400V | |
| Response Time | Slow | |
| Package / Case | 5mm x 20mm | |
| Mounting Type | Holder | |
| Breaking Capacity @ Rated Voltage | 1.5kA | |
| Melting I²t | 11.44 | |
| Approvals | CCC, cULus, PSE/JET, TUV | |
| Operating Temperature | -40°C ~ 85°C | |
| Color | - | |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
| DC Cold Resistance | 0.055 Ohm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BK1-S505H-2-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BK1-S505H-2-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of BK1-S505H-2-R is new and unused, you can buy BK1-S505H-2-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BK1-S505H-2-R.
